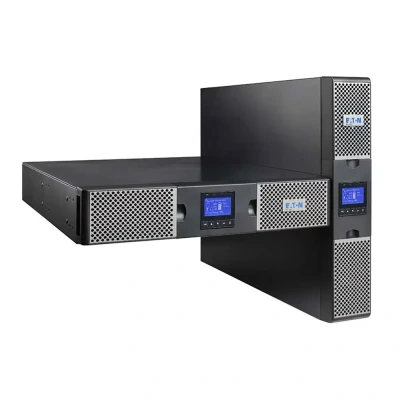

9PX1000IRT2U EATON CORPORATION Power Supplies UPS

Eaton 9px1000irt2u Rack Ups. EU PLUG.Features:General:- Topology:On-line double conversion with Power Factor Correction (PFC) system.- Configuration:Rack/Tower.- Rating (VA/Watts):1000/1000.- Dimensions (H x W x D, mm):86.5 x 440 x 450.- Weight (kg):17.4.- Rail Kit Included:Yes Electrical Input:- Connection:(1) IEC-320-C14.- Input Voltage Range:176-276V without derating (up to 100-276V with derating).- Nominal Voltage:200/208/220/230/240V.- Frequency:50/60 Hz autoselection.- Frequency Range:40-70 Hz Electrical Output:- Nominal Voltage:200/208/220/230/240V Outlets:- (8) IEC-320-C13.- Efficiency (Normal Mode):Up to 91.5% in online mode (up to 97.5% in Hi-efficiency mode).- Output Frequency:50/60 Hz autoselect, frequency converter mode.- Battery Management:ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units.- Extended Battery Capability:EBM (2U) Communications:- User Interface:Multilingual graphical LCD display.- Communication Ports:1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay.- Communication Slot:1 slot for Network-MS card, ModBus-MS or Relay-MS cards.Environmental & Standards:- Audible Noise:35dB.- Operating Temperature:0 to 40°C.- Safety markings:IEC/EN 62040-1, UL 1778, CSA 22.2.- EMC Markings:IEC/EN 62040 -2, FCC Class B, CISPR22 Class B.- Approvals:CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star. tradeinn Techinn

UNINTERRUPTIBLE POWER SUPPLY, RACK / TOWER, 1000 W, 1000 VA, 10 AMP, INPUT: 176/276 VAC, OUTPUT: 230 V, 40-70 HZ, 8 OUTLETS
