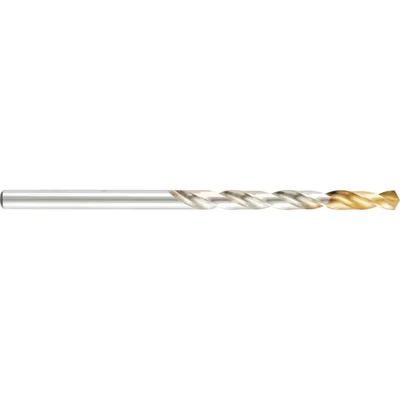

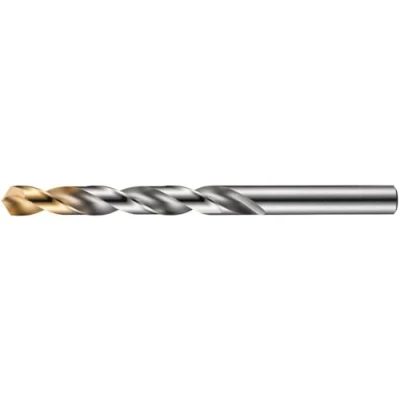

A002 HSS TiN Coated Jobber Drill 8.50mm

General description This Dormer A002 HSS-Tin Coated Jobber Drill is designed for high performance and durability. With a titanium nitride (TiN) coating, it enhances tool life and provides excellent drilling capabilities across a variety of materials including steel, stainless steel, cast iron, ceramics, and plastics. The drill features a self-centering split point for superior hole quality and positional accuracy, making it suitable for both hand and machine use. Technical specifications Diameter: 8.5 mm Overall length: 117 mm Cutting length: 75 mm Shank type: Cylindrical Coating: TiN (Titanium Nitride) Maximum drilling depth: 4 times the diameter (4XD) Cutting angle: 118° Model: A002 Nominal tolerance: h8 Cutting direction: Right Feed capacity in steel up to 800 N: 0.14 mm/W Compatibility and accessories Compatible with standard drill chucks Suitable for drill presses Ideal for drilling in steel and similar materials Installation Insert the drill bit into a compatible drill chuck

Dormer Metric A002 TiN Jobber Drill Bits have a TiN tip coating for increased tool life and performance. It has a self-centring split point for superb hole quality and positional accuracy. It will drill steel stainless cast iron ceramics plastics and many other materials with ease. Made to DIN 338RN/BS328/ISO 235 standards. PLEASE NOTE ALL sizes under 2.0mm are NOT TiN Coated.Tip diameter: 8.50mm.Working length: 75mm.Overall length: 117mm.PTDDOR850TIN
