A002 HSS TiN Coated Jobber Drills (2) 3.0mm OL: 61mm WL: 33mm

ManoMano

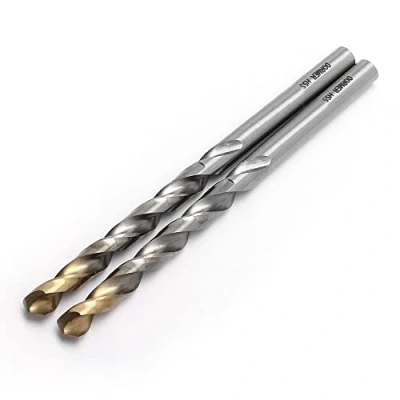

General description The Dormer A002 HSS-TiN Coated Jobber Drill Bits are designed for precise drilling in metal. Each bit features a pointed web and fluted tip design that allows for efficient cutting with reduced axial force and accurate centering. The optimised helix angle enhances stiffness, while the bright body improves cutting performance on ductile materials. The Titanium Nitride coating resists wear and allows for increased cutting speeds. Technical specifications Material: High-Speed Steel (HSS) coated with TiN Model: A002S Type: Spiral drill bit Tip Diameter: 3.00 mm Working Length: 33 mm Overall Length: 61 mm Cutting direction: Right-hand Design standard: DIN 338 Nominal tolerance: h8 Cutting angle: 118° Depth of drilling: 4 times the diameter (4xD) Compatibility and accessories Compatible with standard drill chucks and collets Supplied in blister packaging of 2 pieces Installation Insert the drill bit into a compatible drill chuck or collet Ensure the drill is set to the

Amazon

Metal Drill Bits TiN Cobalt Coated Drill Bits Dormer A002 HSS-TiN Coated Drill Bit 3.0 mm Pack of 2. Tip diameter: 3 mm. Working length: 33 mm. Total length: 61 mm.
