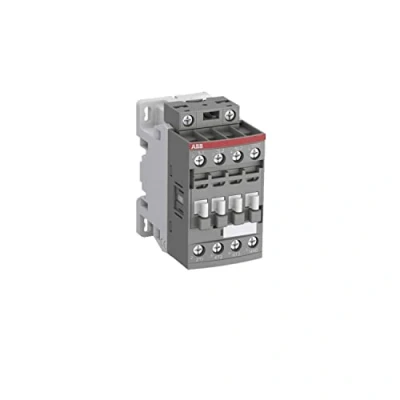

ABB AF16 30 10 13 100 250V, 50/60HZ DC Contactor (ABB1SBL177001R1310)

Zoro Tools

AF16 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.

Amazon

Optimize logistics and cut administration costs with fewer product variants to handle Access global support and use the same products in all parts of the world Built-in surge suppression A reduction of the coil's energy consumption by 80% lets you save energy Secure your uptime by letting the AF technology overbridge voltage drops and sags., Weight: 0.5952481074 pounds, Manufacturer: ABB
