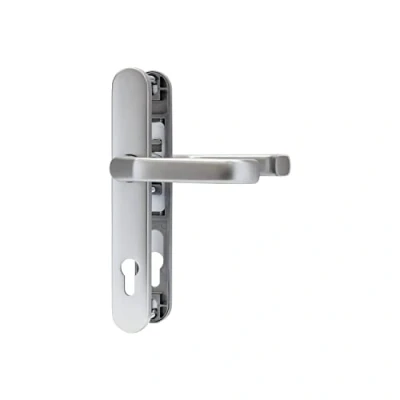

ABUS Door Fitting SRG92N F1 Handle Set for Front Doors with on Both Sides Narrow Frames Aluminium

Use: narrow protective fitting (36 mm width) is ideal for use on house entrance doors with narrow frame profiles and a door thickness of 57 - 65 mm Pressure fitting: door handle for pushing down on the inside as well as on the outside of the door Safety: door protection fitting is used to protect and stabilise the mortise lock and the door cylinder as well as to open and close the door Details: distance between door handle (hole centre) and keyhole meets the standard of 92 mm, square 8 x 8 mm (cross section), weight 1041 g, colour aluminium Easy to install: thanks to the adjustable cams, the existing drill holes can be used when retrofitting a fitting - distances of the cams can be adjusted to standard drill patterns Cylinder overhang: the overhang of the built-in cylinder should be 12 mm
