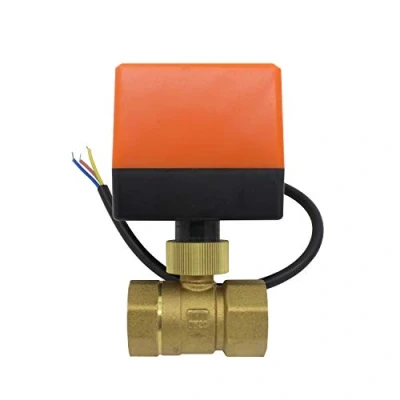

AC 220v 3 Wires 2 Port motorised Valve Normally Closed Motorized Ball Zone 1/2 3/4 1 1/4 inch (3/4 inch)

Note: Firstly, connect double color wire to Nuetral wire of 220v and connect brown wire to Live wire of 220v, Secondly, 1-while the blue wire connect to live wire of 220v, the valve will open, after completely close, the actuator will be power off; 2-while the blue wire disconnect to the live wire of 220v, the valve will close, after open completely, the actuator will be power off. The maximum pressure is 1.0Mpa. The nominal pressure is 1.6Mpa. DN15 = 1/2 inch; DN20 = 3/4 inch; DN25 = 1 inch; DN32 = 1-1 / 4 inch Flow rate: DN15 (1/2 inch): 11m3/h; DN20 (3/4 inch): 20m3/h; DN25 (1 inch): 60m3/h; DN32 (1-1/4 inch): 80m3/h;, Manufacturer: Yisheng
