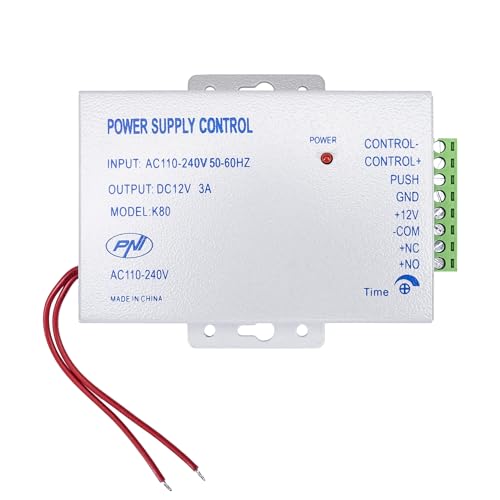

Access Control power source, supply PNI K80 AC 110 260V to DC 12V 3A For Door

Pni K80 Power Supply Control. Voltage source with timer PNI K80 for yale and access control.Features:Applications:- PNI K80 is a timer power supply that can be used in access control systems, video surveillance systems or in any application with less than 3A consumption.Entry:- The PNI K80 source is supplied with a voltage that can vary between 110 and 260 V and has a 12V output.Timing:- The source is equipped with a very useful output timing circuit in case of using the source to power a yacht where you need to stay open for a few seconds.- Insert a flat screwdriver and turn right or left to set the timer between 0 and 15 seconds.Physical characteristics:- The motherboard of the voltage source is protected by a shock-resistant metal casing. Due to its small size it can be easily mounted and hidden in a connection box. It has the dimensions: 120 x 95 x 38 mm.Specifications:- Features Card reader- Operating temperature: -26 ° C ~ + 60 ° C- Power supply features- Source type: In switching- Input voltage: 110 - 260V- Output voltage: 12Vdc- Maximum output current: 3A- Power: 35W- Operating temperature: -20 to +60 degrees C- Dimensions: 120 x 95 x 38 mm- Weight: 315gThe package contains:- Power source: Yes- User manual: Yes. tradeinn Techinn

Can control various types of electric locks Worldwide voltage input 110 - 260V Based delay control circuit, lock time can be in 0-15 seconds
