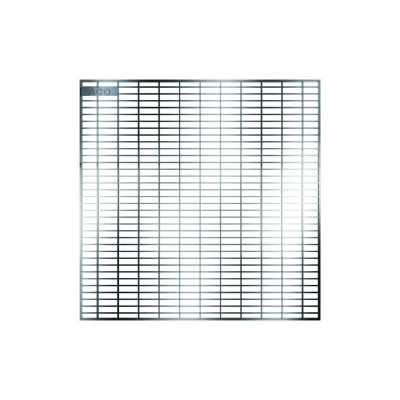

ACO Freedeck Mesh Access Frame Grating Galvanised Steel Silver

The ACO FreeDeck system combines line and point drainage for advanced roof and balcony drainage. Made of galvanized or stainless steel, its open-sided channel efficiently collects rainwater in raised or suspended deck structures. Rainwater is intercepted at surface run-off, percolation within the deck, and outlet positions. Channels measure 20mm in height and 390mm in width with a 14mm x 30mm mesh grating, laid directly onto insulation or waterproofing layers for efficient drainage. Ideal for 'open or closed joint' paving, they ensure safety for foot traffic and weather protection. Compliant with England and Wales Building Regulations Document M, Scottish Building Standards Handbook Section 4, and Northern Ireland Building Regulations 2006, the FreeDeck provides level access drainage for domestic and non-domestic constructions. This system supports all flat roof finishes and maintains building integrity throughout its life.. ACO Freedeck Mesh Access Frame Grating - Galvanised Steel Silver
