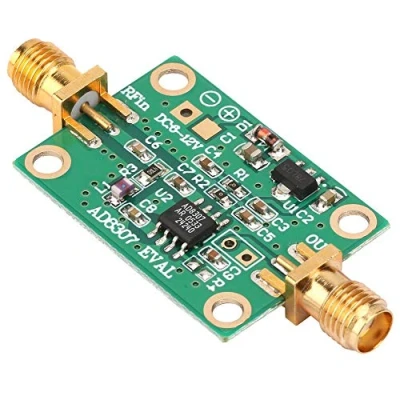

ad8307 RF Detector Module Power Meter Logarithmic RRSI Measuring Testing 0.1 600M 75 +15dBm

[Wide range]: RF Detector Module is working frequency range 1-8000MHz, can detect - 65-5dBm radio frequency signal, DC voltage output detection intensity (unit: dBm, logarithmic detection), professional and practical [Working Principle] Radio frequency is converted to DC voltage output. The RF corresponding to the amplitude or power of output voltage is the best choice to improve the accuracy of IF measurement chip [Application]: RF Detector Module is widely used in converting level into decibel form, transmitter antenna power measurement, received strength indicator (RSSI), low-cost radar and sonar processing, network and spectrum analyzer (up to 120 decibels), to determine the level as low as 20 Hz, multimeter true decibel communication mode [High quality]: The RF detector uses AD8318 chip, and the design of power supply voltage regulation circuit makes the detection accuracy tend to official data [Features]: The Logarithmic Detector has low cost, small size, low power consumption, high accuracy, high stability, wide dynamic range, etc
