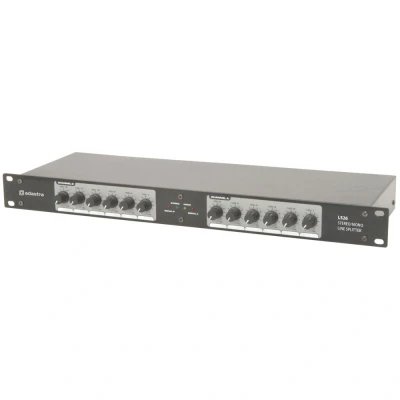

Adastra LS26 line splitter

Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups. - Up to 12 outputs from 1 or 2 inputs - Individual volume control for each output - Input peak LEDs SPECIFICATION: * Power supply 115/230Vac, 50/60Hz (IEC) * Inputs A & B, (6.3mm jack) * Outputs 1 - 6 & 7 - 12 (6.3mm jack) * Input impedance 20k Ohms * Output impedance 220 Ohms * Frequency response 20Hz - 20kHz, +0/-1dB * Signal to noise ratio >95dB * THD <0.008% * Dimensions 483 x 44 x 170mm * Weight 2.0kg
