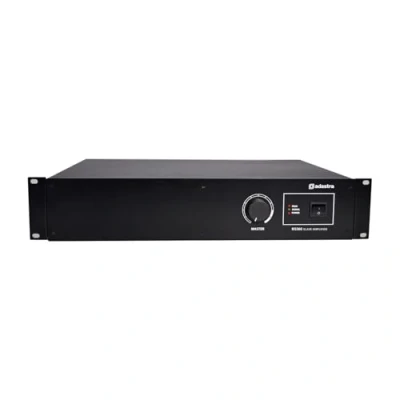

Adastra RS Series 100V Line Slave Amplifier: High Power, Rack Mountable Class D Amplifiers with Versatile Connectivity, Ideal for Medium to large Installations & System Expansion 360W RS360

Boxed2Me

RS Series 100V Line Slave AmplifiersHigh power class-D 100V line slave amplifiers in a rack-mountable housing. Slave inputs accept standard line level audio from a mixer or RM series mixer amplifier. Slave outputs can be cascaded onto further RS slaves to build larger systems. All line level inputs are connectable via RCA sockets or hard-wired via removable screw terminals. A further removable screw terminal is provided for 100V input, which enables the RS series slave amplifier to extend an existing 100V installation by connecting directly to the 100V speaker feed, or indeed from a long distance 100V feed using standard double-insulated cable. A 24V terminal is provided for connection to a security or alert panel to mute the output if required during alarm triggering. Speaker outputs are either 100V or low impedance (switchable on RS121 and RS241) which is stable down to 2 Ohms, enabling multiple low impedance speakers to be connected if preferred. Designed to power medium to large installations from a mixer output or to expand existing systems.Details19" Rack-mountable 1U (120W, 240W) or 2U (360W, 480W)Efficient and lightweight Class-D amplifiersLine in and out on RCA or Euroblock terminals24V mute contacts for alarm panel muting100V signal input for extending existing speaker runsSpecificationsPower supply 175-264Vac 50Hz (IEC)Input signal Slave line in (RCA/screw terminal), 100V in (screw terminal)Output : signal Slave line out (RCA/screw terminal)Outputs : speaker 100V or 2 Ohms min. (screw terminals)Controls Master volumeTHD Mute 24V alarm contacts (screw terminal)

Amazon

High-Power, Efficient Amplification | Harness the power of high-efficiency class-D amplification, ensuring robust and reliable performance for medium to large-scale audio installations with minimal heat generation Versatile Connectivity Options | Seamlessly integrate into existing setups with multiple input options including RCA sockets and removable screw terminals for line level and 100V inputs, ensuring compatibility with various audio sources and mixers Expandable System Design | Easily scale your audio system by cascading to multiple amplifiers, providing flexibility to grow your setup as needed without compromising on sound quality Enhanced Safety Features | Benefit from built-in security with a 24V terminal for mute functionality, ensuring immediate audio silencing during alarm triggering for added safety in emergency situations Flexible Output Configurations | Choose between 100V or low impedance (stable down to 2 Ohms) outputs, giving you the versatility to connect multiple low impedance speakers or extend 100V speaker lines, tailored to your specific installation needs
