Adjustable mitre angle Made of aluminium from Hultafors I 300mm x 45mm Foldable With locking at 45, 90, 135 & 270 in EU marking notches centre line 253120

Zoro Tools

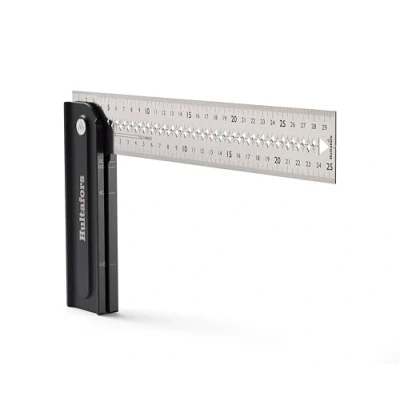

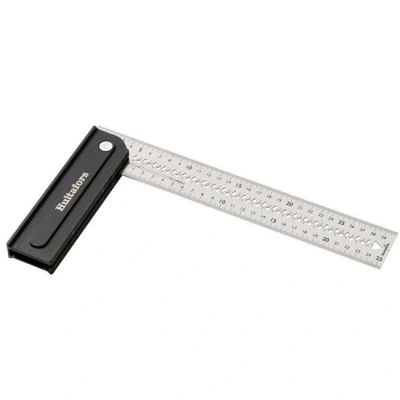

The Hultafors Quattro 270 Adjustable Square offers versatile functionalIty with its rotating blade that can be set at angles of 45, 90, and 135. It can also be rotated 270, allowing the use of the opposite side of the stock where there is no slit, suitable for sliding thin sheet metal parts. Additionally, it features markings for 22.5, 67.5, and 75/15 angles. By rotating the blade 270, a rounded corner is created, enabling work in uneven corners. The stock of the square is constructed from fully anodized aluminum, and it has a 19mm thick handle. The high-strength stainless steel blade is 45mm wide and 1mm thick, suitable for work with standard stud dimensions. The square also includes a center line for easily marking out both sides of a stud. Scribing notches spaced 5mm apart are available, allowing the drawing or cutting of parallel lines along an edge. Carefully chosen MATERIALs and manufacturing techniques, including CNC-milled stock and precision laser-cut blade, ensure high accuracy with an angle tolerance of 0.06 (1 mm/m) The square is also foldable, providing easy storage and portability in the pocket of your work trousers. The Hultafors Quattro 270 Adjustable Square is proudly made in Europe, with full control over working conditions and a focus on sustainability.

Amazon

CONTENTS - Adjustable mitre angle Quattro 270 with a tolerance of ±0.06°. MATERIAL & DIMENSIONS - The handle of the rotatable angle is made of resistant stainless steel. The robust joint is made of aluminium and measures 300mm x 45mm x 1mm. The bracket can be folded and therefore easily stowed away. VERSATILE - The angle can be set at 45°, 90° & 135° and also has markings for 22.5°, 67.5° and 75°/15°. Thanks to its rotation function, it can measure angles up to 270°. To make work easier, the angle has a centre line and marking notches for marking marks. The angle has both a sharp and a rounded outer corner for working on uneven surfaces. INNOVATIVE PREMIUM DESIGN - The Quattro 270 is based on a unique design patented by Hultafors. It is used both for measuring lengths and for easily determining angles. HULTAFORS - Quality tools for professionals & craftsmen. Swedish premium quality for professional craftsmen since 1883. For 140 years we have been developing innovative tools that are reliable in every situation. We have always focussed on precision, innovation and quality. And that won't change.

ManoMano

The Hultafors Quattro 270 Adjustable Square has a blade which can be rotated to 45°, 90° and 135°. It can also be rotated 270° allowing you to use the opposite side of the stock where there is no slit that, for example, thin sheet metal parts can slide into. In addition, there are markings for 22.5°, 67.5° and 75°/15°. If you rotate the blade 270° you get a rounded corner instead so you can work in uneven corners. The stock is made of fully anodized aluminum with a 19mm thick handle. Its high strength stainless steel blade is 45mm wide and 1mm thick. This accommodates work with standard stud dimensions and a center line makes it easy to quickly mark out both sides of a stud. It also has scribing notches spaced 5mm apart, these can be used to draw or cut a line parallel along an edge. Carefully selected materials and manufacturing techniques such as a CNC-milled stock and a blade cut with a precision laser provide high accuracy; angle tolerance ±0.06° (±1 mm/m). The square is also
