Airflow Aventa 100T In-Line Shower Fan Kit - Set of 4 Pieces

The Airflow Aventa 100T is an in-line shower fan kit designed for demanding ducted installations. It provides high-performance mixed-flow extraction with 145–187 m³/h airflow across two selectable speeds (Normal and Boost) and a 2–30 minute adjustable overrun timer to help with moisture clearance. The unit is built with moisture protection (IPX4) in a robust ABS housing, weighing about 1.5 kg with compact dimensions of 190 × 246 × 126 mm, suitable for lofts or service voids. A complete 100 mm installation kit is included, featuring flexible ducting, mounting ties, an internal extract valve, and an external grille to maintain airflow stability during installation. The product is intended for in-line installation and is compatible with 100 mm duct systems to support long duct runs.

Key specifications

• Airflow: 145–187 m³/h (40–52 l/s)
• Two speeds: Normal and Boost
• Overrun timer: 2–30 minutes
• Noise: 27–36 dB(A) @ 3 m
• Motor: 21–33 W low-watt
• IPX4 moisture protection; ABS housing
• Weight: 1.5 kg; Dimensions: 190 × 246 × 126 mm

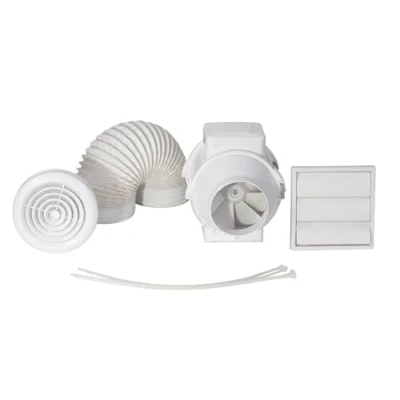

• Installation kit: 6 m ducting, ties, valve, external grille
• Duct size: 100 mm
• Model: Airflow Aventa 100T (in-line shower fan kit, without light)
