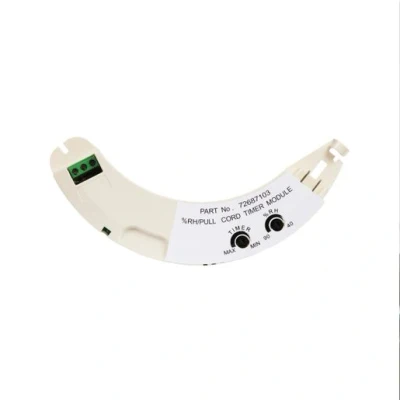

Airflow iCON HTM Plug in Humidity and Timer Module for 240V Fan

The Airflow iCON Fan Control Timer Module is a highly innovative solution designed to enhance the functionality of iCON 15, 30, and 60 fans. This module is perfect for those looking to upgrade or replace their existing fan systems without the need to change the entire fan unit, ensuring seamless integration across the iCON fan range.

Adjustable Run-On Timer

One of the standout features of the module is its Adjustable Run-On Timer, which operates between 2 to 45 minutes. This function allows the fan to continue running after the switch-off, effectively clearing any residual moisture and unpleasant odors within a space. The module comes factory pre-set to approximately 15 minutes but can be easily adjusted with the included tool to meet individual preferences.

Humidity Sensor Functionality

The module also boasts a sophisticated Humidity Sensor, with settings ranging from 40% to 90% RH. This sensor automatically activates the fan when humidity levels rise, making it particularly useful in environments prone to dampness. The factory pre-set sensitivity is set at around 70% RH, but users have the flexibility to alter this sensitivity using the supplied adjustment tool, ensuring the fan operates optimally for varying conditions.

Dual Activation Methods

An additional benefit of the iCON Fan Control Timer Module is its dual activation methods: humidity sensing and pull cord activation. The pull cord activation feature allows for manual control; when installed within an iCON fan, users can easily activate the fan through the integrated pull cord. Once activated, the fan will run according to the pre-set timer, allowing for convenience alongside efficiency.

Recommended Humidity Settings

For optimal performance within the UK climate, it is recommended to set the humidity levels closer to 70%-90% RH, given that indoor humidity typically falls within this range. A setting as low as 40% RH may lead to continuous fan operation, which can be mitigated by adjusting the setting to ensure the fan doesn't take too long to switch off.

User-Friendly Design

The Airflow iCON Fan Control Timer Module is engineered for ease of use. Pulling the cord turns on the fan for the chosen timer duration (between 2–45 minutes). A second pull while the fan is in operation will not turn off the fan; instead, it simply resets the timer, starting the countdown anew based on the selected setting.

In conclusion, the Airflow iCON Fan Control Timer Module is an exceptional addition to any iCON fan system, merging advanced features with user-friendly controls for enhanced air quality management.
