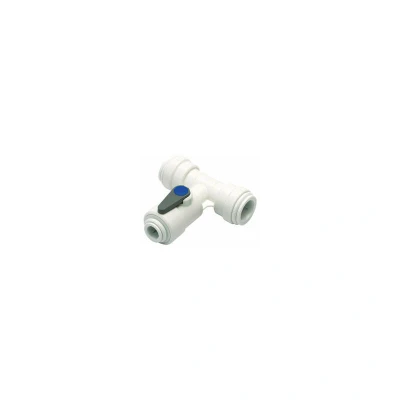

Angle Stop Valve 1/4" Water Feed Connector 15mm Push fit John Guest ASV3

The John Guest Speedfit 15mm x 1/4 inch Angle Stop Valve (ASV3) is a push-fit, acetal valve designed to isolate an appliance or fixture branch feed without disturbing the main supply line. It features an integral service check valve for backflow prevention and a ¼ turn chrome plated ball valve for quick isolation. The valve is designed for easy installation, creating a leak-tight seal without tools or sealants, and is suitable for foodstuff and potable liquids, inert gases, and intermittent hot water applications. It is manufactured in the UK and uses lead-free, non-toxic materials, with corrosion-free construction and WRAS and BSI approvals. The design includes a unique collet locking mechanism and in-line push-fit connections, offering reliable performance with minimal maintenance.

Key features

• Push-fit 15mm x 1/4 inch connection
• Integral service check valve for backflow prevention
• ¼ turn chrome plated ball valve for quick isolation
• Collet locking design for secure fit
• Lead-free, non-toxic materials
• Corrosion-free and WRAS/BSI approved

Technical specifications

• Material: Acetal with food-grade nitrile O-Ring
• Max pressure: 10 bar (potable liquids) at 20°C
• Max pressure: 4 bar (intermittent hot water) at 60°C
• Compatible with LLDPE or soft metal pipe/tubing
• Suitable for foodstuff, potable liquids, inert gases, intermittent hot water
• Not for compressed air, vacuum, explosive gases, petroleum spirit, or other fuel/heating systems

Not suitable for compressed air, vacuum, explosive gases, petroleum spirit, or other fuel or heating systems.
