Assorted 45� Angled Fuel Line Quick ors 16pc 34229 Connect

Name: Assorted 45� Angled Fuel Line Quick ors 16pc 34229 Connect
Brand: Connect
SKU: a6e2a4582f3f69af5cdd20723ae7c1cf

1/1

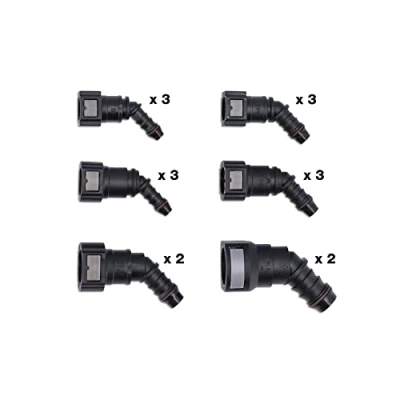

Image of Assorted 45� Angled Fuel Line Quick ors 16pc 34229 Connect

Amazon

Prices from

73.49

Description

Amazon 45° angled connectors, sizes: 7.89 x 6mm, 7.89 x 8mm, 9.89 x 6mm, 9.89 x 8mm, 11.8 x 10mm, 15.82 x 14mm. Constant running pressure: 5 bar (72psi); max pressure: 7 bar (101psi). Operating temperature: -40°C to 120°C. Body manufactured from nylon PA12; O-ring from FKM seal (viton). Made to SAE J2044-2009 standards. Grey tab for fuel identification (note: AdBlue specific connectors have red tabs). Top up packs available (3pc), see Part Nos. 34230 (7.89 x 6mm), 34231 (7.89 x 8mm), 34232 (9.89 x 6mm), 34233 (9.89 x 8mm), 34235 (11.8 x 10mm), 34236 (15.82 x 14mm, 2pc).

Compare webshops (2)

Sponsored links · Some shops pay us a fee

Sort by:

£ 73.49

Description (1)

45° angled connectors, sizes: 7.89 x 6mm, 7.89 x 8mm, 9.89 x 6mm, 9.89 x 8mm, 11.8 x 10mm, 15.82 x 14mm. Constant running pressure: 5 bar (72psi); max pressure: 7 bar (101psi). Operating temperature: -40°C to 120°C. Body manufactured from nylon PA12; O-ring from FKM seal (viton). Made to SAE J2044-2009 standards. Grey tab for fuel identification (note: AdBlue specific connectors have red tabs). Top up packs available (3pc), see Part Nos. 34230 (7.89 x 6mm), 34231 (7.89 x 8mm), 34232 (9.89 x 6mm), 34233 (9.89 x 8mm), 34235 (11.8 x 10mm), 34236 (15.82 x 14mm, 2pc).
