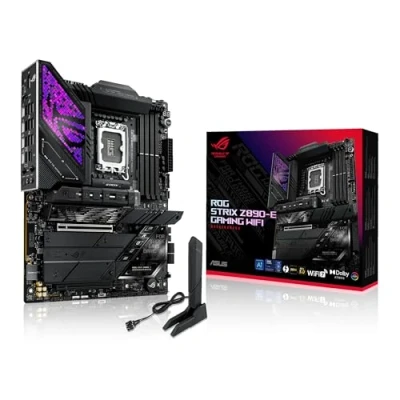

ASUS Intel ROG Strix Z890 E Gaming WiFi ATX motherboard, 18+1+2+2 power stages, DDR5 slots, PCIe 5.0 w/full support for next gen GPUs, seven M.2 7, AI Overclocking, Networking II

TechInn

Asus Rog Strix Z890-e Gaming Wifi Motherboard. Unleash next-generation power with the ASUS ROG STRIX Z890-E Gaming WiFi. Engineered for Intel Core Ultra (Series 2) processors, this ATX motherboard is a performance powerhouse. Harness blistering speeds with support for DDR5-8800 memory, next-gen Wi-Fi 7, and 5 Gigabit Ethernet. Dominate storage with an incredible seven M.2 slots and expand with a PCIe 5.0 slot for your GPU. Packed with dual Thunderbolt ports, premium 7.1 audio, and extensive USB connectivity, it´s the ultimate foundation for an elite gaming PC. Specifications:- Processor manufacturer: Intel- Processor socket: LGA 1851 (Socket V1)- Supported processor: Intel Core Ultra (Series 2)- Maximum supported memory clock speed: 8800 MHz- ECC compatibility: Non-ECC- Supported memory types: DDR5-SDRAM- Number of memory slots: 4- Memory slots type: DIMM- Maximum internal memory: 192 GB- Memory channels: Dual channel- Unbuffered memory: Yes- Wi-Fi standard: Wi-Fi 7 (802.11be)- Ethernet: Yes- Ethernet interface type: 5 Gigabit Ethernet- Wifi: Yes- Bluetooth: Yes- Bluetooth version: 5.4- USB 3.2 Gen 2x2 connectors: 1- USB 2.0 connectors: 3- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2- Number of SATA III connectors: 4- Front panel audio connector: Yes- Connector ATX power connector (24-pin): Yes- CPU fan connector: Yes- Number of chassis fan connectors: 5- EPS power connector (8-pin): Yes- 12V power connector: Yes- Thunderbolt headers: 1- Chassis intrusion connector: Yes- USB 3.2 Gen 1 (3.1 Gen 1): 3- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 7- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 2- Ethernet LAN (RJ-45) ports: 1- S/PDIF out port: Yes- HDMI ports: 1- DisplayPort: 1- USB connectors: USB Type-A, USB Type-C- Microphone in: Yes- Number of Thunderbolt ports: 2- RAID support: Yes- Number of supported storage drives: 11- Storage drive interfaces supported: M.2, SATA III- Storage drive types supported: HDD & SSD- RAID levels: 0, 1, 5, 10- Number of supported HDDs: 4- PCI Express x16 (Gen 5.x) slots: 1- PCI Express x16 (Gen 4.x) slots: 1- Number of M.2 (M) slots: 7- BIOS types: UEFI AMI- BIOS memory size: 256 MB/s- CMOS clearing button: Yes- Chipset family: Intel- Chipset: Intel Z890- Form factor: ATX- Audio output channels: 7.1 channels- Sound chip: Realtek ALC4080- Component for: PC- Supported Windows operating system: Windows 11- Width: 305 mm- Depth: 244 mm. tradeinn Techinn

Amazon

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel LGA 1851 Socket: Ready for Intel Core Ultra processors (Series 2) Exclusive AI Technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II Exclusive Memory Technologies: DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance Robust Power Solution: 18(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an C-shaped heatpipe Latest M.2 Support: Three PCIe 5.0 M.2 slots and four PCIe 4.0 M.2 slots, all with substantial cooling solutions Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 10Gbps Type-C rear I/O port with up to 30-watt Power Delivery fast charging plus USB Wattage Watcher, ten USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-gen graphics card, HDMI 2.1 and DisplayPort 1.4 High-Performance Networking: On-board Intel Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek 5 Gb Ethernet DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield

Currys

This ATX board from ASUS is designed to handle powerful components. It's ready for Series 2 Intel® Core™ Ultra Processors, so it's designed for the future of AI computing. You can plug in up to 192 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0  you can have high-speed storage that won't make you wait around. Got questions? Just ask the ASUS AI Advisor - this AI tech uses natural language to help guide you through PC hardware.Good to know- AI overclocking pushes your CPU to the limit when needed - and you don't have to do anything- It's got AI Cooling II, so you can manage the thermals and acoustics with just a click of a button- Boost your connection with AI Networking II, which lets you switch channel to get the best speeds- Find just the right spot for your WiFi antenna with Armoury Crate's Direction Finder- GameFirst monitors network performance to help to reduce latency- The Q-release design for PCIE and M.2 makes it easy to upgrade or maintain your PC
