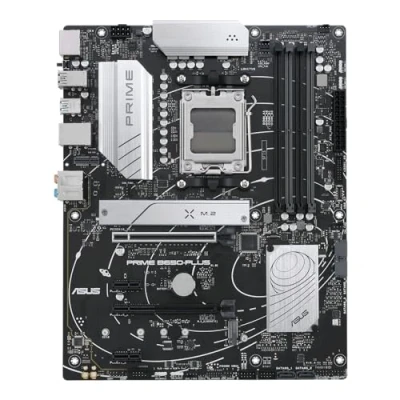

ASUS Prime B650 PLUS CSM (Socket AM5/B650/DDR5/S ATA 6 Go/s/ATX)

Asus Prime B650-plus-csm Motherboard. Unlock the full potential of your next-gen build with the ASUS PRIME B650-PLUS-CSM motherboard. Engineered for AMD Ryzen 7000 series processors, this ATX board provides a robust foundation for high-performance computing. Harness the speed of DDR5 memory up to 6400MHz, PCIe 4.0 for your graphics card, and dual M.2 slots for lightning-fast storage. Comprehensive connectivity includes 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C, HDMI 2.1, and DisplayPort 1.4, making it the all-around choice for a powerful and reliable PC. Specifications:Processor:- Processor manufacturer: AMD- Processor socket: AM5 socket- Supported processor: AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th GenMemory:- supported memory types: DDR5-SDRAM- Number of memory slots: 4- Type of memory slots: DIMM- Memory Channels: Dual-channel- ECC: Yes- No ECC: Yes- Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400MHz- Maximum internal memory: 128 GB- Unbuffered memory: YesStorage regulators:- Supported storage drive types: HDD & SSD- Supported storage disk interfaces: M.2, SATA III- Number of HDDs supported: 4- RAID Support: Yes- RAID Levels: 0, 1, 10Internal I/O:- USB 2.0, connectors: 2- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2- Number of SATA III connectors: 4- Front panel audio connector: Yes- ATX power connector (24 pin): Yes- CPU fan connector: Yes- Number of chassis fan connectors: 3- EPS power connector (8-pin): Yes- Number of COM connectors: 1- TPM connector: Yes- Thunderbolt headers: 1- 12V electrical connector: Yes- Connector for RGB LED strips: YesRear Panel I/O Ports:- Number of USB 2.0 ports: 2- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1- Ethernet LAN (RJ-45) ports quantity: 1- Number of HDMI ports: 1- HDMI version: 2.1- Number of DisplayPorts: 1- DisplayPort Version: 1.4- Line input: Yes- Microphone, input jack: Yes- S/PDIF output port: YesConnection:- Ethernet: Yes- Ethernet interface type: 2.5 Gigabit EthernetFeatures:- Chipset: AMD B650- Audio output channels: 7.1 channels- Component for: PC- Form factor: ATX- Chipset Family: AMD- Supported Windows operating system: Windows 10, Windows 11Expansion slots:- PCI Express x1 (Gen 4.x) Slots: 2- PCI Express x16 (Gen 4.x) Slots: 2- Number of M.2 slots (M): 2BIOS:- Types of BIOS: UEFI AMI- BIOS, memory size: 256 MB/sWeight and dimensions:- Broad: 305 mm- Depth: 244 mm. tradeinn Techinn

AMD AM5 Socket: Ready for AMD Ryzen 7000 Series Desktop Processors ASUS Prime B650-PLUS-CSM (Socket AM5/B650/DDR5/S-ATA 6 Go/s/ATX) Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C, front USB 3.2 Gen 1 Type-C, USB4 Support ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking ASUS Software & DIY-Friendly Design — UEFI BIOS, AI tuning (supported models) and pre-mounted I/O. Backed by ASUS's manufacturer warranty.
