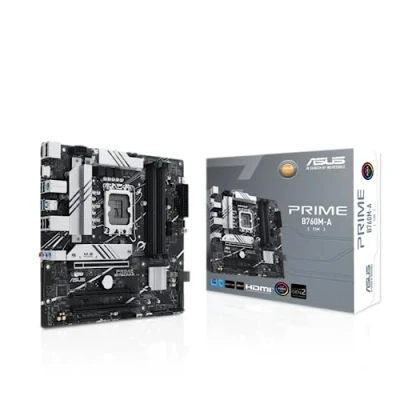

ASUS PRIME B760M A CSM Business Motherboard Socket Intel LGA 1700 (Intel B760, mATX, DDR5 Memory, 2x PCIe 4.0 M.2, Aura Sync)

Asus Prime B760m-a-csm Motherboard. The ASUS PRIME B760M-A-CSM motherboard is a versatile micro ATX board designed for Intel LGA 1700 processors, including Core i3, i5, i7, i9, Pentium Gold, and Celeron. It supports lightning-fast DDR5 memory up to 128GB with speeds reaching 7200MHz and offers both M.2 and SATA III storage interfaces for HDDs and SSDs. Featuring 2.5 Gigabit Ethernet, extensive USB connectivity, and 7.1 channel audio, this motherboard is built for reliable PC performance and gaming. ASUS PRIME B760M-A-CSM.Processor manufacturer:Intel, Processor socket:LGA 1700, Compatible processor:Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.Supported memory types:DDR5-SDRAM, Maximum internal memory:128 GB, Memory slot type:DIMM.Supported storage drive interfaces:M.2, SATA III, Supported storage drive types:HDD & SSD.Ethernet interface type:2.5 Gigabit Ethernet.Component for:PC, Form factor:micro ATX, Chipset family:Intel.Specifications:-Processor manufacturer:Intel.-Processor socket:LGA 1700.-Compatible processor:Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9.-Supported processor sockets:LGA 1700.-Maximum supported memory clock speed:7200 MHz.-Supported memory types:DDR5-SDRAM.-Number of memory slots:4.-Type of memory slots:DIMM.-Maximum internal memory:128 GB.-Memory channels:Dual channel.-Supported memory clock speeds:7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz.-Non-ECC:Yes.-Unbuffered memory:Yes.-Ethernet:Yes.-Ethernet interface type:2.5 Gigabit Ethernet.-Wifi:Yes.-USB 2.0, connectors:3.-USB 3.2 Gen 1 (3.1 Gen 1) connectors:3.-Number of SATA III connectors:4.-Audio connector on front panel:Yes.-ATX power connector (24 pins):Yes.-CPU fan connector:Yes.-Number of connectors to chassis fan:2.-Front panel connector:Yes.-EPS power connector (8-pin):Yes.-S/PDIF, output connector:Yes.-12 V electrical connector:Yes.-Connector for RGB LED strips:Yes.-TPM connector:Yes.-Number of COM connectors:1.-Line input:Yes.-USB 2.0:4.-Number of Type A USB 3.2 Gen 2 (3.1 Gen 2) ports:2.-PS/2:1 mouse port.-Ethernet LAN ports (RJ-45):1.-WiFi-AP antenna connector:1.-HDMI Ports:2.-DisplayPort:1.-Headphone jack:1.-Microphone Input:Yes.-Number of supported storage units:6.-Supported storage disk interfaces:M.2, SATA III.-Types of storage units supported:HDD & SSD.-Number of HDDs supported:4.-PCI Express x16 slots (Gen 4.x):3.-Number of M.2 slots (M):2.-BIOS types:UEFI AMI.-BIOS, memory size:128 MB/s.-CMOS cleaning button:Yes.-Support for parallel processing:Not supported.-Chipset family:Intel.-Chipset:B760.-Form factor:Micro ATX.-Audio output channels:7.1 channels.-Component for:PC.-Supported Windows operating system:Windows 10 x64, Windows 11.-Width:244 mm.-Depth:244 mm.-Package width:270 mm.-Package depth:263 mm.-Package height:52 mm.-Package weight:1.14 kg.-Height:40 mm.-Cables included:SATA. tradeinn Techinn

Intel LGA 1700 Socket: Ready for the 13th and 12th Inte processor generation Ultrafast connectivity: PCIe 4.0, dual M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH cooling body, body, body, body, body, body, body Fan header and Fan Xpert 2+ Exclusive memory technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II Aura Sync RGB lighting Integrated addressable Gen 2 headers and Aura RGB header for RGB LED strips that can be easily synchronized with Aura Sync-enabled hardware
