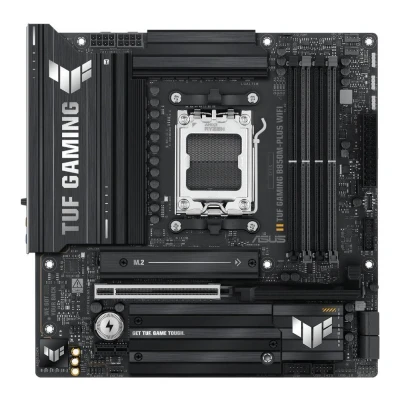

ASUS TUF GAMING B850M PLUS WIFI AMD mATX motherboard, 14+2+1 80A DrMOS power stages, DDR5, PCIe 5.0 Ready, 3xM.2 slots, Wi Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, BIOS FlashBack, Aura Sync

Asus Tuf Gaming B850-m Plus Wi-fi Motherboard. Unleash next-gen gaming power with the ASUS TUF Gaming B850-M Plus Wi-Fi. Engineered for the latest AMD Ryzen 7000, 8000, and 9000 series processors, this micro ATX board delivers elite performance. Harness the speed of PCIe 5.0 for both your graphics card and primary M.2 SSD, complemented by DDR5 memory support. Dominate online with ultra-fast Wi-Fi 6E and 2.5G Ethernet. Packed with extensive connectivity and built with legendary TUF durability, it´s the rock-solid foundation for your compact, high-performance gaming rig. Specifications:Processor:- Processor manufacturer: AMD- Processor socket: AM5 socket- Supported processor: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series- Supported processor sockets: AM5 socketMemory:- Supported memory types: DDR5-SDRAM- Number of memory slots: 4- Type of memory slots: DIMM- Memory Channels: Double channel- ECC compatibility: ECC and non-ECC- Maximum internal memory: 192 GB- Unbuffered memory: YesStorage regulators:- Supported storage drive types: HDD & SSD- Supported storage disk interfaces: M.2, SATA III- Number of HDDs supported: 4- Number of supported storage units: 7- RAID Support: Yes- RAID Levels: 0, 1, 5, 10Internal I/O:- USB 2.0, connectors: 2- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1- Number of SATA III connectors: 4- S/PDIF, output connector: Yes- Front panel audio connector: Yes- Front panel connector: Yes- ATX power connector (24 pin): Yes- CPU fan connector: Yes- Number of chassis fan connectors: 3- Chassis intrusion connector: Yes- Number of COM connectors: 1- 12V electrical connector: YesRear Panel I/O Ports:- Number of USB 2.0 ports: 4- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3- Number of USB 3.2 Gen 2 portsx2 Type-C: 1- Ethernet LAN (RJ-45) ports number: 1- Number of HDMI ports: 1- Number of DisplayPorts: 1- WiFi-AP antenna connector: 1Connection:- Ethernet: Yes- Ethernet interface type: 2.5 Gigabit Ethernet- Wifi: Yes- Wi-Fi standard: Wi-Fi 6E (802.11ax)- Wi-Fi standards: Wi-Fi 6E (802.11ax)- Bluetooth: Yes- Bluetooth version: 5.3- Chipset: AMD B850- Sound chip: Realtek ALC1220P- Audio output channels: 7.1 channels- Component for: PC- Form factor: micro ATX- Chipset Family: AMD- Supported Windows operating system: Windows 10 x64, Windows 11Expansion slots:- PCI Express x1 (Gen 4.x) Slots: 1- PCI Express x16 (Gen 4.x) Slots: 1- PCI Express x16 (Gen 5.x) Slots: 1- Number of M.2 slots (M): 3- 1st largest M.2 key size: 2280- 1st M.2 highest PCI Express generation: 5.0- 2nd M.2 largest key size: 2280- 2nd M.2 highest PCI Express generation: 4.0- 3rd M.2 largest key size: 2280- 3rd M.2 highest PCI Express generation: 4.0BIOS:- Types of BIOS: UEFI AMI- BIOS, memory size: 256 MB/sWeight and dimensions:- Broad: 244 mm- Depth: 244 mmPackage contents:- Cables included: SATA- Antenna included: Yes- Screws included: YesOther features:- Weight: 1.2 kg. tradeinn Techinn

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors Enhanced Power Solution: 14+2+1 80A DrMOS power stages, 8-layer PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, with massive M.2 heatsink Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C port, front USB 10Gbps Type-C connector Comprehensive Cooling: Enlarged VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 DIY Friendly Design: PCIe Slot Q-Release, new M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack and Pre-mounted I/O shield Unmatched Personalization: Three Addressable Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting Renowned Software: TurboV Core, ASUS DriverHub, ASUS GlideX, ASUS MyHotkey
