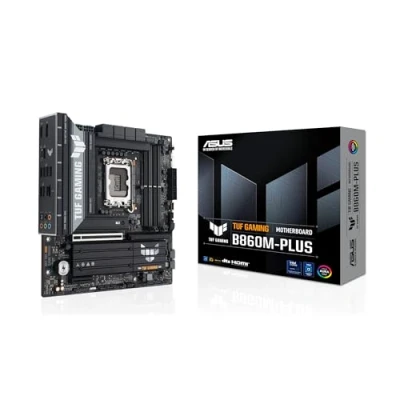

ASUS TUF Gaming B860M PLUS LGA1851 Motherboard

Asus Tuf Gaming B860m-plus Motherboard. Dominate your gaming experience with the ASUS TUF Gaming B860M-Plus motherboard. Engineered for Intel Core Ultra (Series 2) processors on the LGA 1851 socket, it boasts DDR5 memory support up to 256GB for blazing-fast performance. Featuring robust connectivity including 2.5 Gigabit Ethernet, multiple USB ports, and extensive storage options with M.2 Gen 5 support, this Micro ATX board is built for durability and speed. Unleash the power of PCIe 5.0 and enjoy immersive 7.1-channel audio for ultimate gaming immersion. Specifications:- Processor manufacturer: Intel- Processor socket: LGA 1851 (Socket V1)- Supported processor: Intel Core Ultra (Series 2)- Supported processor sockets: LGA 1851- ECC compatibility: Non-ECC- Supported memory types: DDR5-SDRAM- Number of memory slots: 4- Memory slots type: DIMM- Maximum internal memory: 256 GB- Memory channels: Dual channel- Unbuffered memory: Yes- Ethernet: Yes- Ethernet interface type: 2.5 Gigabit Ethernet- USB 2.0 connectors: 1- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1- Number of SATA III connectors: 4- Front panel audio connector: Yes- ATX power connector (24-pin): Yes- CPU fan connector: Yes- Number of chassis fan connectors: 3- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1- Front panel connector: Yes- 12V power connector: Yes- Thunderbolt headers: 1- Chassis intrusion connector: Yes- Number of USB 3.2 Gen 2x2 Type-C ports: 1- USB 2.0: 1- USB 3.2 Gen 1 (3.1 Gen 1): 4- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2- Ethernet LAN (RJ-45) ports: 1- S/PDIF out port: Yes- HDMI ports: 1- DisplayPort: 1- RAID support: Yes- Number of supported storage drives: 7- Supported storage drive interfaces: M.2, SATA - Supported storage drive types: HDD & SSD- RAID levels: 0, 1, 5, 10- Number of HDDs supported: 4- PCI Express x16 (Gen 5.x) slots: 1- PCI Express x4 (Gen 4.x) slots: 1- 1st M.2 largest key size: 2280- 1st M.2 highest PCI Express generation: 5.0- 2nd M.2 largest key size: 2280- 2nd M.2 highest PCI Express generation: 4.0- 3rd M.2 highest PCI Express generation: 4.0- Number of M.2 (M) slots: 3- BIOS types: UEFI AMI- BIOS memory size: 256MB/s- Chipset family: Intel- Chipset: Intel B860- Form factor: Micro ATX- Audio output channels: 7.1 channels- Component for: PC- Supported Windows operating system: Windows 10 x64, Windows 11- Width: 244 mm- Depth: 244 mm. tradeinn Techinn

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel LGA 1851 Socket: Support Intel Core Ultra Processors (Series 2) Enhanced Power Solution: 12+1+2+1 80A DrMOS power stages, 8-layer PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, equipped with all M.2 heatsinks Ultrafast Connectivity: PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C port with DP Alt mode, front USB 10Gbps Type-C connector Comprehensive Cooling: Enlarged VRM heatsink, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+ DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Dashboard, Q-DIMM, Q-LED and Pre-mounted I/O shield Unmatched Personalization: Three Addressable Gen 2 headers, all configurable with ASUS-exclusive Aura Sync Renowned Software:TurboV Core, ASUS DriverHub, ASUS MyHotkey
