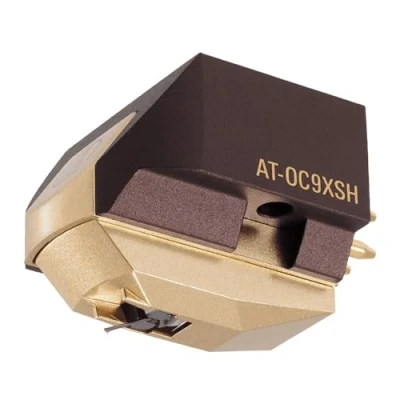

Audio Technica AT OC9XSH Dual Moving Coil Cartridge with Shibata Stylus (Brown Gold)

Model AT-OC9XSH Mounting 1/2' centers / Threaded inserts Frequency Response 20 to 47,000 Hz Body Material Aluminium Channel Separation 27 dB (1 kHz) Output Channel Balance 1.0 dB (1 kHz) Output Voltage 0.4 mV (at 1 kHz, 5 cm/sec) Vertical Tracking Angle 20 degrees Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g) Stylus Shape Shibata Stylus Size 2.7 x 0.26 mil Stylus Construction Nude square shank Cantilever 0.28 mm Ø nude boron Coil Impedance 12 Ohms (1 kHz) Coil Inductance 25 mH (1 kHz) DC Resistance 12 Ohms Static Compliance 20 x 10 - 6 cm / dyne Dynamic Compliance 16 x 10 - 6 cm / dyne (100 Hz) Terminal Pins Brass Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.) Recommended Load Impedance Min 100 Ohms Cartridge Weight 7.6 g Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm Accessori es Included 1 non magnetic screw driver 1 brush 2 washers
