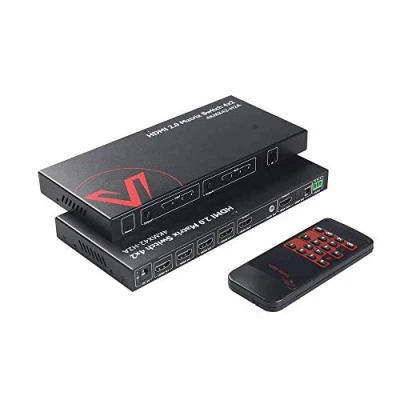

AV Access Professional 4x2 4K@60Hz HDMI 2.0 Matrix Switch, HDR10 & 3D Effect, ARC/CEC, 4K to 1080P Downscaling, SPDIF 5.1CH Audio, HDCP 2.2, 18Gbps Bandwidth, RS232 API + IR Button Control

【𝐔𝐇𝐃 𝟒 𝐈𝐧 𝟐 𝐎𝐮𝐭 𝐇𝐃𝐌𝐈 𝐌𝐚𝐭𝐫𝐢𝐱】AV Access 4×2 HDMI Matrix sends any of 4 inputs to output 1 and/or output 2, the outputs’ videos can be different or the same. It supports UHD 4K@60Hz 4:4:4, standard HDMI 2.0 with HDR10, 3D effect and HLG ( Hybrid Log Gamma ). It supports videos at 4K and 1080P to be played resolution simultaneously. It supports high-speed 18Gbps bandwidth. 【𝐀𝐑𝐂 & 𝐀𝐮𝐝𝐢𝐨 𝐄𝐱𝐭𝐫𝐚𝐜𝐭𝐢𝐨𝐧 】The 4 in 2 Out HDMI matrix splitter providess DIP switch control on output2 : ARC & De-embed allows Audio Return Channel function or Audio extract accordingly. S/PDIF (Toslink) out: supports PCM 2.0/5.1, DTS up to 5.1 CH. 3.5mm L/R headphone analog audio de-embedded from output 1. It supports HDMI audio formats such as PCM 2.0/5.1/7.1, TrueHD, Atmos, DTSHD Master Audio and DTS:X. 【𝟒𝐊/𝟏𝟎𝟖𝟎𝐏 𝐃𝐨𝐰𝐧𝐬𝐜𝐚𝐥𝐢𝐧𝐠 & 𝐂𝐄𝐂】AV Access HDMI matrix supports downscaling from 4K to 1080P independently at each output. Plug and play, no extra driver needed. To get both of Atmos in sync, please make sure that both the TV and receiver supports that. The matrix also supports automatic/manual CEC control to turn on/off the connected display. 【𝟑 𝐖𝐚𝐲 𝐂𝐨𝐧𝐭𝐫𝐨𝐥】The 4K HDMI Matrix supports 3 ways to control the device. It supports IR remote control, button switch and RS232 control. Advanced users may use RS232 serial communication to control the matrix, we provide a fully documented API for 4KMX42-H2A. 【𝐆𝐫𝐞𝐚𝐭 𝐂𝐨𝐦𝐩𝐚𝐭𝐢𝐛𝐢𝐥𝐢𝐭𝐲 & 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧】The HDMI matrix 4×2 supports HDCP 2.2, it works well with HDMI devices such as Apple TV series, PS4 Pro, X BoX series, Nvidia Shield, Xfinity box, Elgato Game Capture, Amazon Fire TV, Comcast etc. It provides built-in surge protection and superior ESD protection to prevent thunder strikes. We provides lifetime customer service and 1 year warranty.
