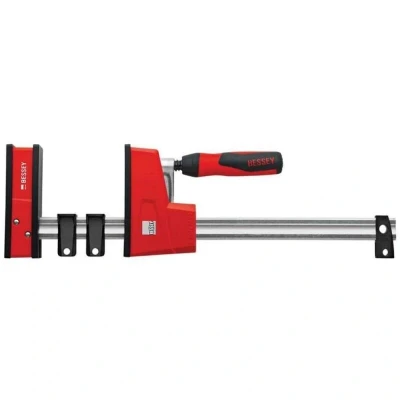

Bessey KRE100 2K Revo Kre Body Clamp, Multi Colour, 1000/95 mm

The Bessey KRE100-2K K Body Parallel Jaw Clamp REVO KRE is designed to deliver powerful clamping and spreading capabilities while ensuring the utmost safety and versatility for various applications. With a maximum clamping force of up to 8,000 N, this clamp can easily handle robust tasks, making it an essential tool for both professional and DIY enthusiasts.

Features and Specifications

- Clamping Force: The clamp boasts an impressive holding strength of up to 8,000 N, capable of efficiently securing even the most challenging materials.

- Opening Span: The clamp features a generous opening span of 1000 mm, accommodating a wide range of workpiece sizes.

- Throat Depth: With a throat depth of 95 mm, this clamp provides ample clearance for thicker materials, ensuring a secure grip.

- Rail Dimensions: The robust rail measures 29 x 9 mm, offering enhanced stability and durability during use.

- Spreading Capacity: The clamp can be easily converted for spreading tasks with a minimum spread of 225 mm and a maximum spread of 1130 mm.

- Weight: At 3.45 kg (approximately 1.1 lbs), the clamp is lightweight yet sturdy, ensuring easy handling without sacrificing strength.

Design and Construction

The Bessey KRE100-2K features very large parallel clamping surfaces equipped with three removable pressure caps. These caps not only protect sensitive surfaces from damage but are also resistant to glue, paint, and grease solvents, ensuring clean and efficient work.

The clamp's metal-reinforced plastic housing is engineered for enhanced strength, while the optimised sliding arm includes double slide protection. This unique design feature maintains the set clamping force and prevents any unintentional slipping of the sliding arm when in the unclamped condition, significantly increasing user safety and confidence during operations.

User-Friendly Features

The clamp is designed with user comfort in mind. It incorporates a high-quality 2-component symmetrical plastic handle, equipped with a hexagon socket that allows for maximum torque application of 17 Nm. This ensures that the clamping force can be applied comfortably and efficiently, reducing user fatigue during prolonged usage.

The continuously adjustable upper section of the clamp provides the flexibility needed for optimum positioning on workpieces, allowing for precise and gentle clamping, even on delicate surfaces. This makes the Bessey KRE100-2K ideal for a variety of applications, including clamping corners, recessed edges, and both pointed and round surfaces.

Versatility and Accessories

One of the standout features of the Bessey KRE100-2K is its versatility. The clamp can be quickly and easily converted without the need for additional tools, making it well-suited for spreading tasks as well. With a wide array of ingenious accessories available, such as tilting adapters and clamp extensions, users can expand the functionality of this clamp to fit their specific needs, making it a valuable addition to any workshop.
