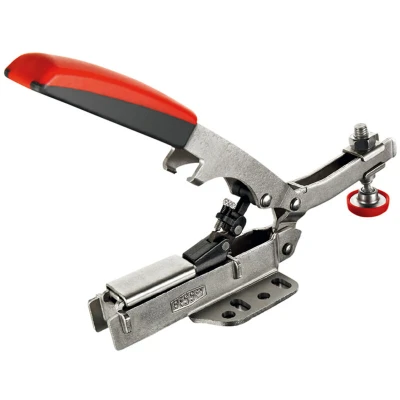

Bessey STC HH50 HH Toggle Clamp Open Arm, Grey/Red, 40 mm

ManoMano

General description This Bessey STC Self-Adjusting Horizontal Toggle Clamp is designed for secure and versatile holding of workpieces during assembly, welding, or machining. It automatically adjusts to different heights and widths while maintaining a nearly constant clamping force without manual adjustments. Ideal for small-scale productions, it ensures quick and secure clamping, making it suitable for woodworking, metalworking, and DIY projects. Technical specifications Clamping Height: up to 40 mm Maximum Clamping Force: up to 2,500 N (approx. 250 kg) Opening Adjustment: automatic and continuous up to 35 mm Clamping Arm Position: closed with lever in horizontal position Material: tempered and nickel-plated steel plates, galvanized steel screw Handle: high-quality, oil-resistant two-component plastic Base Plate Hole Pattern: metric and imperial measurements Weight: approximately 0.38 kg Compatibility and accessories Compatible with various workpieces requiring quick, adjustable

Power Tools Direct

These Bessey STC Self-Adjusting Horizontal Toggle Clamps automatically adjust to different workpiece heights while maintaining a constant clamping force. They ensure quick and secure clamping and are ideal for small-scale productions. Using the set screw on the cantilevered joint the clamping force can be adjusted to meet particular requirements. The baseplate which is suitable for both metric and imperial has been designed to facilitate fast and secure clamping set up. The Toggle Clamps have high-quality oil-resistant two-component handles. These are ergonomically designed to fit well in the hand and provide a good grip.This STC Self-Adjusting Horizontal Toggle Clamp has the following specification: Clamping Height: up to 40mm.Clamping Force: up to 2500N.Weight: 0.38kg.PTDBESSTCHH50

Amazon

Adjustable clamping force up to 2,500 N depending on the setting screw in the joint Hole pattern of the base plate suitable for millimetres and inches Span wide: 40mm, Weight: 0.8377565956 Pounds, Manufacturer: Bessey
