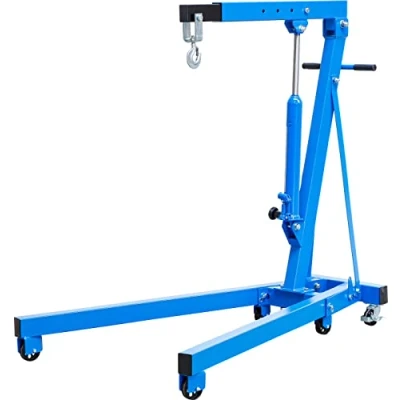

BGS 11998 Engine Crane 1000 kg

heavy duty crane for daily garage use | suitable as a engine crane, for aligning components and machines or for lifting and holding loads in everyday workshop routine | foldable for easy transport and space-saving storage | with hand lever pump easy lifting and lowering by hydraulic cylinder | easy to move in connection with 4 castors and 2 heavy duty swivel castors | load carrier on the boom with stable chain and safety load hook | telescopic crane boom with 4-way adjustment options adjustable lifting arm length in following 4 positions: crane arm position 1: 900 mm, max. load 1000 kg | crane arm position 2: 990 mm, max. load 750 kg | crane arm position 3: 1080 mm, max. load 500 kg | crane arm position 4: 1170 mm, max. load 250 kg rated load: max. 1000 kg | lifting range: 160 - 2040 mm | crane arm length: max. 1170 mm | stroke (max. rated load): 1860 mm | height (max. rated load): 415 mm | opening width of hook: 18 mm front wheel dimensions: Ø 89 x 30 mm | middle wheel dimensions: Ø 76 x 30 mm | rear wheel dimensions: Ø 76 x 30 mm | over all dimension (lowest position): 1515 x 1050 x 1445 mm | working temperature: 4 - 41 °C (40 - 105 °F)
