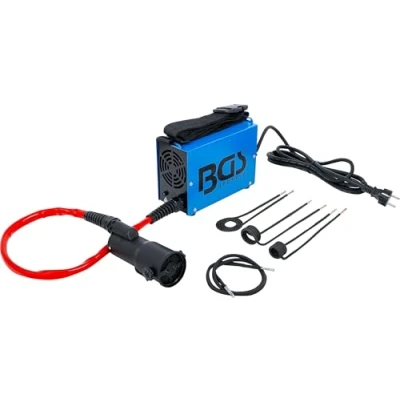

BGS 2169 Induction Heater 1.5 kW

principle of operation: there is an alternating magnetic field, the metallic object (e.g. nut), in the induction coil, acts on the induced eddy currents as an electrical resistance and thus heats up allows heating of screws/nuts without heating surrounding components too much or even destroying them, as it is often the case when heated with a torch within the shortest possible time, e.g. rusty nuts are heated and can be loosened using on e. g. ball joint pinch bolts and other items on axle and engine a formless coil (length: 800 mm) allows using the device also for heating of components (bearings, etc.) e.g. bearings in which the heating facilitates disassembly or assembly includes the following induction coils: induction coil: 19 mm, length: 220 mm (for Ø 10-16 mm) | induction coil: 27 mm, length: 220 mm (for Ø 17-24 mm) | induction coil: 50 mm, length: 235 mm (for heating small surfaces) | formless coil, 800 mm, for heating of components max. operating temperature: 900 °C | max. power: 1.5 kW | max. current: 7.5 A length: 200 mm | width: 140 mm | height: 75 mm | Weight 4,5 kg power supply frequency 50 - 60 Hz | power supply voltage (AC) 230 V protection class IP 20
