BGS 74285 Hydraulic Cylinder Tool Set with Pulling Spindles for Diesel Injector Extractor 17 t

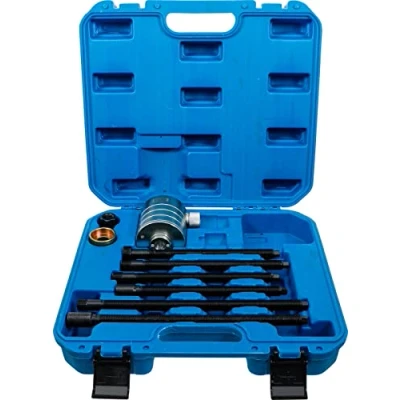

for controlled disassembly of stuck injectors hydraulic cylinder with collar nut is placed together with the special pulling spindles on a puller bridge to pull out the injectors to be used in combination with injector extractor | for BMW (BGS 8782) and a hydraulic pump working pressure: max. 700 bar | hydraulic piston diameter: 30 mm | hydraulic piston stroke: 16 mm | Hydraulic cylinder diameter: 78 mm scope of delivery: 1 hydraulic cylinder internal thread M16 x 1.5 and coupling nut M21 x 1.25 | 1 puller spindle nut M16 x 1.5 | 1 distance washer | 1 puller spindle M25 x 1.0 internal thread (240 mm) | 1 puller spindle M14 x 1.5 external thread (240 mm) | 1 puller spindle M17 x 1.0 internal thread (240 mm) | 1 puller spindle M18 x 1.5 internal thread (250 mm) | 1 puller spindle M17 x 1.0 internal thread (315 mm) | 1 puller spindle M14 x 1.5 external thread (315 mm)
