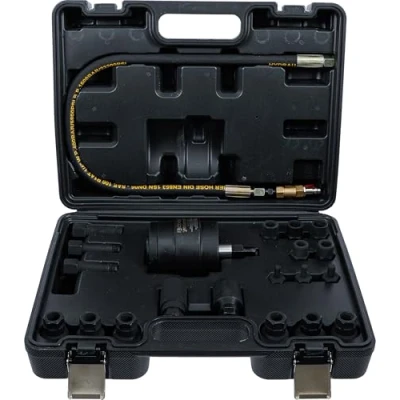

BGS 91120 Pneumatic Injector Extractor Set 21 Piece

for compressed air-assisted removal of particularly tight diesel injectors - the diesel injectors are removed from the cylinder head by pneumatically generated impact effect - coking and rust deposits are broken up and the injector will released from sealing seat the extractor is screwed in directly to the fixed injector by using the corresponding adapter - compact design - high impact effect - including a wide range of adapters, suitable for the most commonly used diesel injectors piston stroke: 12 mm - lifting speed: 2500 per minute - spindle thread: M14 x 1.5 - working pressure: 8 bar (116 psi) - sound pressure level (lpa): 93.6 db(a) - sound power level (lwa): 101.6 db(a) - vibration lever (x-axis): 19.28 m - s - vibration lever (y-axis): 10.47 m - s - vibration lever (z-axis): 64.57 m - s - vibration lever (sythesis): 68.19 m - s - compressed air connection: 6.3 mm (1 - 4") scope of delivery: 1 pneumatic injector extractor - 1 compressed air adapter with cmpressed air valve - 1 external thread adapter M20 x 1 - 1 external thread adapter M18 x 0.75 - 1 external thread adapter M17 x 1 - 1 internal thread adapter M14 x 1.5 - 1 internal thread adapter M16 x 1.5 - 1 internal thread adapter M18 x 1.5 - 1 external thread adapter M20 x 1.5 - M12 x 1.5 - 1 external thread adapter M22 x 1.5 - M14 x 1.5, Manufacturer: BGS Do it yourself
