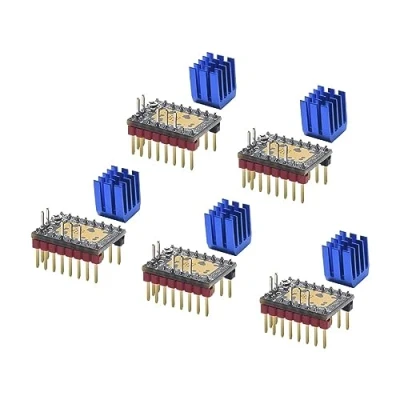

BIGTREETECH TMC2209 V1.3 Stepper Motor Driver UART,Step/DIR Mode Ultra Silent Stepsticks with Heatsink for SKR V1.4 Turbo/SKR 3,Octopus/Manta M4P/M5P/M8P MKS Gen L 3D Printer Motherboard 5Pcs

✅【Ultra-silent Stepper Motor driver】BIGTREETECH TMC2209 V1.3 stepper motor driver adopts StealthChop2 silent motor operation technology is an ultra-silent motor driver IC for two-phase stepper motors. Continuous current up to 2.0A (peak 2.8A),voltage ranges from 5.5V to the maximun output of 28V.It can operate bipolar stepper motors from 1 to 1/256 step modes. ✅【Supports UART, STEP/DIR Modes】BTT TMC2209 stepper motor driver support UART, STEP/ DIR Mode, except that you need to modify the firmware for the mode you use. for detailed tutorials, please refer to the BIGTREETECH GITHUB instructions. ✅【Sensorless Homing】The BTT TMC2209 v1.3 stepper motor driver incorporated StallGuard technology to detect alterations in the motor current and use this measurement to detect the end of an axis' stroke and produce 3D printers without limit switches. ✅ 【 More cost-effective 】 The TMC 2209 stepper driver is compatible with all FDM 3D printer on the market, eliminating the expensive cost of redesign. It can perfectly replace the original non silent TMC2100 A4988 DRV8825 LV8729 stepper driver as the most cost-effective choice ✅【Wide Compatible】 TMC2209 Stepper driver it can be widely used in various FDM 3D printers board,such as BTT SKR V1.4 Turbo,SKR 3/Octopus v1.1/Octopus pro/Manta M4P/M5P/M8P,Manta E3 EZ,SKR Pro v1.2 ,MKS Gen L series motherboard. 【 ❤️After-sales Service】The manual and installation instructions have been uploaded to Github,If you have any problems during use,We offer all our customers 1 year warranty of tmc2209. Please feel free to contact us for help.
