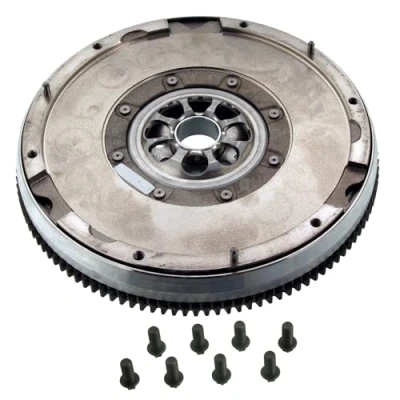

Blue Print ADF123501 Dual Mass FlyWheel, 1 Unit

Original Blue Print vehicle part – Right First Time Clutch Pressure Plate Outer Diameter: 289,8 mm, Hub Inner Diameter: 33,6 mm, Hub Mounting Hole Diameter: 1,6 mm, Hub Outer Diameter: 115,2 mm, Internal thread diameter for clutch pressure plate mounting hole: M8, Max. Clearance Angle: No. of Teeth for Determination: 6, Max. Clearance: 19 °, Max. Sideplay: 2,9 mm, No. of Mounting Holes: , No. of Teeth: 116, Number of mounting holes - Hub: 8, Number of mounting holes for the clutch pressure plate: 6, Pitch Circle Diameter - Hub: 64 mm, Pitch Circle Diameter – Clutch Pressure Plate: 26 mm, Recess diameter: 152 mm i.a. suitable for: Ford Car: Focus II (8), Focus C-MAX I (3), Focus II (4), S-MAX I (6), C-MAX I (7), Mondeo IV (7) OE numbers (for comparison only): Ford Car: 1 363 71, Ford Motor Company: 3M51-6477-LD Please use the vehicle identification at the top of the page to confirm compatibility with your vehicle; All restrictions must be observed
