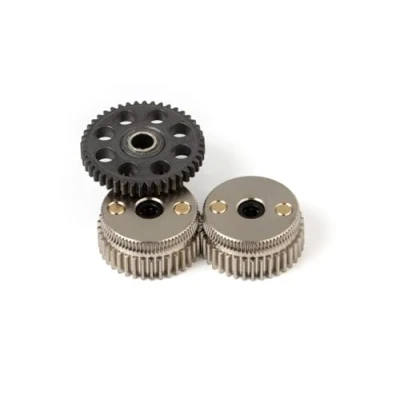

Bondtech LGX Steel Drive Train Upgrade Set

Bondtech Lgx Steel Drive Train Extruder Upgrade Kit. Set of parts made of Hardened Steel to replace the plastic Drive and Main Double Gears on a Bondtech Large Gears eXtruder.The upgrade Set works on:.LGX.LGX Lite.LGX Lite Mirrored Lubrication is mandatory.These drive gears are made of hardened steel.Without lubrication they will wear your motor gear down.Use a brush and the supplied lubricant to coat the drive gear teeth. Metal gears conduct heat.To feed PLA or TPU (low Glass Transition Temperature materials) keep the stepper motor cool (current at, or below, 0.5A). The LGX extruders fit very well most filament extrusion applications, but some cases demand additional features or capacity that cannot be enabled by their plastic gear sets. Those cases are:.When the LGX are used with a plate in between the extruder and the stepper motor thicker than our recommendation, and up to a limit.Optimal Thickness:LGX:between 0.3 and 2.3 mm, LGX Lite & LGX Lite Mirrored:2.5 mm Limited to 3.0 mm.When the LGX are used in work environments, warmer than our recommendation, and up to a limit Recommended Max Environment operating temperature:LGX:70°C, LGX Lite & LGX Lite Mirrored:70°C. tradeinn Techinn

Set of parts made of Hardened Steel to replace the plastic Drive and Main Double Gears on a Bondtech Large Gears eXtruder. The upgrade Set works on: LGX LGX Lite LGX Lite Mirrored
