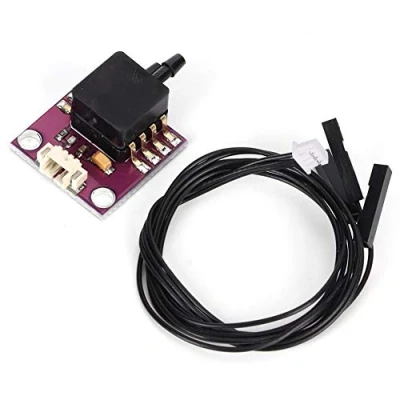

Breakout Pressure Sensor Board, APM2.5 MPXV7002DP Electric Components

The MPXV7002 series piezoresistive sensor in a small form factor package (SOP) is an advanced monolithic silicon pressure sensor designed for a wide range of applications, especially those using microcontrollers or microprocessors with A/D inputs applica This patented single-element transducer combines advanced micromachining technology, thin-film metallization and bipolar processing technology. The product can provide an accurate, high-level analog output proportional to the applied pressure. MPXV7002 is designed to measure positive and negative pressure. In addition, the offset of this series is specifically 2.5V instead of the traditional 0V. This series allows measuring pressure up to 7kPa through each port, both for pressure sensing and vacuum sensing
