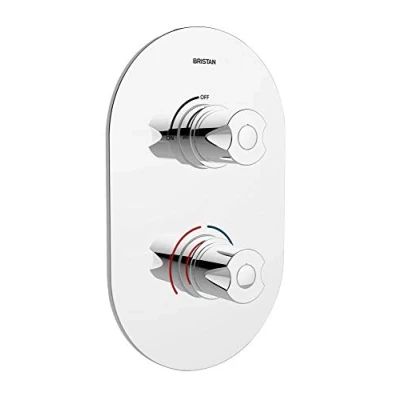

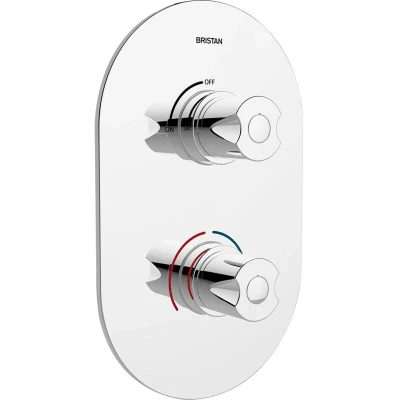

Bristan AR3 SHCVO C Artisan Recessed Thermostatic Dual Control Shower Valve Chrome

ManoMano

General description The Bristan Artisan Recessed Concealed Shower Valve Dual Handle - Chrome is part of Bristan's exclusive Artisan range, known for its quality and modern design. This shower valve is engineered to provide reliable performance and comes with an extensive guarantee. Technical specifications Shower Type: Thermostatic Controls: 2 Outlet: 1 Valve Position: Concealed Valve Shape: Oval Handle Type: Round Minimum Pressure: 0.2 Bar Maximum Pressure: 5.0 Bar Height: 265mm Width: 165mm Depth: 45mm Inlet Connection Size: 15mm Outlet Connection Size: 15mm Connection Centres: 150mm Material: Brass Colour: Chrome Flow Rate @ 0.2 Bar: 7.5 l/min Flow Rate @ 0.5 Bar: 14.1 l/min Flow Rate @ 1.0 Bar: 21 l/min Flow Rate @ 2.0 Bar: 30.5 l/min Flow Rate @ 3.0 Bar: 37.3 l/min Flow Rate @ 5.0 Bar: 48.2 l/min Fitting Depth (including plasterboard and tiles): 45mm - 75mm Minimum Cold Water Supply Temperature: 4°C Maximum Hot Water Supply Temperature: 60°C Fully serviceable from the front

National Shower Spares

Bristan Artisan Recessed Thermostatic Dual Control Shower Valve - Chrome (AR3 SHCVO C) 15mm inlet connections This shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space Fitting depth including plasterboard and tiles is 45mm - 75mm Minimum cold water supply temperature is 4°c Maximum hot water supply temperature is 80°c Fully serviceable from the front Supplied with wall outlet Genuine brand new Bristan product, covered by a Bristan manufacturer's guarantee.

Amazon

Suitable for cavities between 45-75mm Flow rates at 0.2 Bar (open outlet without flow regulators) 8.0 l/min Fully serviceable from the front Guarantee: 5 years covering manufacturing faults 15mm Compression connections, Weight: 3.8360433588 Pounds, Manufacturer: Bristan
