Bristan MINI2 TS1203 CH C Mini Opac Thermostatic Concealed Shower Valve with Handle Chrome

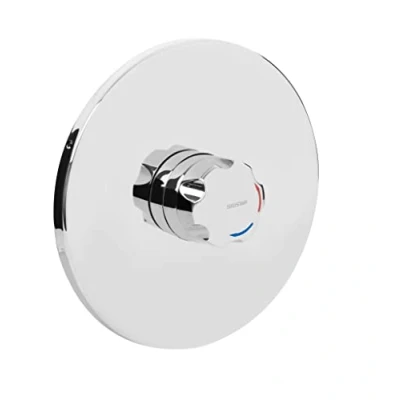

The Bristan OPAC Concealed Mini Shower Valve with Handwheel in Chrome is a thermostatic valve designed for modern bathrooms, supplying water to a single outlet with a single sequential control for both temperature and flow. The compact concealed valve features a round handwheel, a concealed plate for servicing access, and easy-clean filters, offering reliable performance even at low water pressures. Built from brass with a chrome finish, it is suitable for wall cavities and is approved for domestic use with safety features including thermostatic shut-off in the event of hot or cold water failure.

Features

• Single sequential control for temp & flow
• Concealed valve with easy-access cover plate
• Integral isolator and easy-clean filters
• High performance at low pressures
• WRAS and TMV2 approved

Technical specifications

Shower Type: Thermostatic Concealed Mini Shower Valve; Outlet: 1; Inlet connection: 15mm; Outlet connection: 1/2 BSP; Inlet centres: 99mm +/- 1mm; Depth: 43-58mm; Height: 195mm; Width: 195mm; Material: Brass; Colour: Chrome; Temperature control: Single sequential; Flow rate @ 0.2 bar: 11.0 l/min; Flow rate @ 0.5 bar: 20 l/min; Min pressure: 0.2 bar; Max pressure: 8.0 bar; Maximum static pressure: 10.0 bar; Suitable for all plumbing systems; Anti-vandal concealed plate; 1/2” BSP outlet; 99mm centres; Suitable for wall cavity depths 43-58mm; TMV2 and WRAS approved; Manufacturer part number: MINI2 TS1203 CH C

Automatic thermostatic shut-off in the event of hot or cold water failure; anti-vandal concealed plate; integral filters and check valves; suitable for 0.2–8 bar pressure; WRAS and TMV2 approved.
