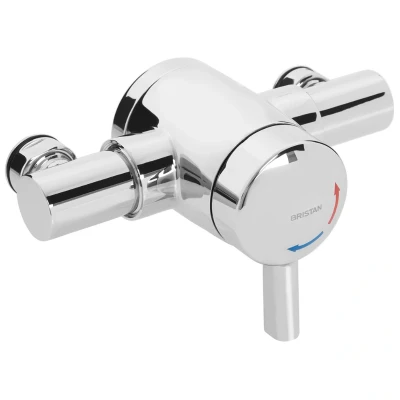

Bristan MT1203 Commercial OPAC Thermostatic Exposed Mini Shower Valve with Lever Chrome

The Bristan Opac Thermostatic Exposed Mini Shower Valve with Lever in Chrome is a compact, single-outlet thermostatic valve designed for exposed installation. It provides a single sequential control for both temperature and flow, and features adjustable inlet centres to suit existing pipework with centres between 110mm and 155mm. The valve maintains performance at low inlet pressures and includes safety features such as automatic shut-off in the event of hot or cold water supply failure along with check valves and serviceable filters for easy maintenance. It is approved for plumbing systems with WRAS and TMV3 testing, ensuring compliance with safety and quality standards while offering a reliable, compact solution for modern showers.

Features

• Single sequential control for temperature and flow
• Adjustable inlet centres 110–155mm
• High performance at 0.5 bar inlet pressure
• Automatic shut-off on hot/cold water failure
• Check valves and serviceable filters as standard

Specifications

Shower Type: Thermostatic Shower Valve. Controls: 1 Shower Valve. Outlet: 1. Valve Shape: Round. Handle Type: Lever. Minimum Pressure: 0.1 Bar. Maximum Pressure: 5.0 Bar. Inlet Connection Size: 15mm. Outlet Connection Size: 1/2 BSP. Connection Centres: 110–155mm. System Suitability: All Plumbing System. Materials: Brass. Colour: Chrome. Brand: Bristan. Collection: Bristan. Depth: 97mm. WRAS Approval Number: 1905901. TMV2/ TMV3 Approvals: TMV3.
