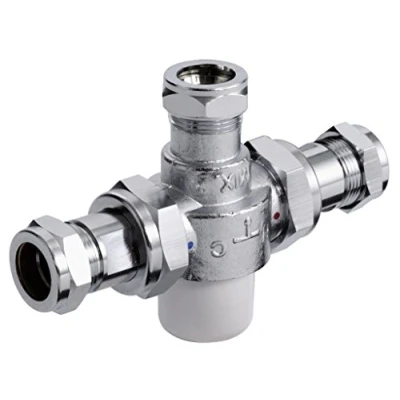

Bristan MT753CP TMV3 Thermostatic Under Bath Blending Valve with 22 mm Inlet Connections Chrome

ManoMano

General description The Bristan Commercial MT753 Thermostatic Mixing Valve, 22mm, Chrome is a high-quality mixing valve from the renowned Commercial range by Bristan. Designed to enhance both style and functionality in your bathroom, this valve is manufactured to the highest standards, ensuring reliability and performance. Technical specifications Height: 106mm Width: 165mm Inlet Connection Size: 22mm Outlet Connection Size: 22mm Maximum Hot Temperature: 80°C Minimum Working Pressure: 0.2 Bar Maximum Working Pressure: 5.0 Bar Flow Rate @ 0.2 Bar: 17 l/min Flow Rate @ 0.5 Bar: 28 l/min Flow Rate @ 1.0 Bar: 42 l/min Flow Rate @ 2.0 Bar: 59 l/min Flow Rate @ 3.0 Bar: 73 l/min Flow Rate @ 5.0 Bar: 95 l/min Material: Brass Colour: Chrome Brand: Bristan Collection: Commercial Style: Modern WRAS Approval Number: 2011903 TMV3 Approval Number: NSF2257/0521 Other information This mixing valve is Part G compliant and suitable for high and low pressure bath fill applications. It features an

Amazon

Automatic shut-off in the event of hot or cold water supply failure Operates at a maximum pressure differential of 10:1. Minimum inlet pressure 0.1bar, maximum pressure 5.0 bar High and low pressure bath fill applications. Check valves, serviceable filters and flat faced inlet connections as standard Factory preset temperature: 43C, Maximum hot water supply temperature: 80C Check valves and serviceable filters as standard. 1 Year Manufacturer's Warranty covering manufacturing faults, Weight: 1.8298367746 pounds, Manufacturer: Bristan
