Bristan N2 SQSHXVO C 1901 Exposed Sequential Shower Valve Chrome Bottom Outlet

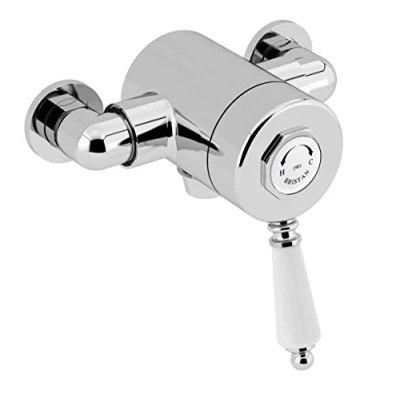

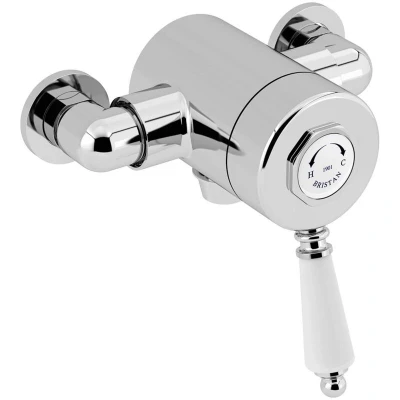

The Bristan 1901 Exposed Sequential Chrome Shower Mixer Valve (Model N2-SQSHXVO-C) combines traditional design with modern thermostatic technology for classic bathroom interiors. It features a single lever for smooth control of water flow and temperature, with a preset 42°C temperature stop. The valve is designed for easy replacement on existing pipework centers and is bottom outlet with two factory-fitted flow regulators. It is crafted in brass with a chrome finish and measures approximately 16 cm by 13 cm by 14 cm, with inlet and outlet connections of 15 mm and 1/2 BSP respectively. The unit supports a wide range of pressures from 0.2 to 5.0 Bar and includes adjustable inlets suitable for pipe centres between 136 mm and 158 mm, making it adaptable to established showers while maintaining traditional aesthetics. The product is covered by a manufacturer’s guarantee of 5 years.

Technical specifications

• Inlet connection size: 15mm
• Outlet connection size: 1/2 BSP
• Operating pressure: 0.2–5.0 Bar
• Flow rates at 0.2–5 Bar: 10.3–58.5 l/min
• Depth 140 mm; Pipe centres 136–158 mm
• Material/Finish Brass, Chrome
