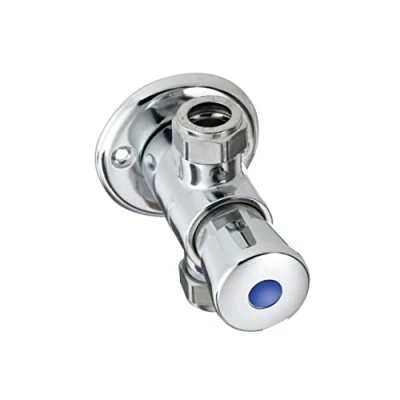

Bristan TUF100ECP Exposed Timed Flow Control for Water Economy, Chrome

The Bristan TUF100ECP is a chrome exposed shower valve designed for commercial environments such as gyms and leisure centers. It is a manual, single-control valve suitable for showers and urinals, featuring a default 25 second time delay to promote water efficiency. The valve is built with a brass body and chrome finish, designed for exposed installation, and supports thermostatic mixing compatibility. It operates within a working pressure range of 0.2 to 3.0 bar and provides flow that adapts to available pressure, delivering measurable performance across common supply conditions.

Features

• Chrome exposed non-concussive valve for commercial use
• 25 second time delay (+/-5–10 s) for water efficiency
• Operates showers and urinals in gyms and leisure centers
• 0.2–3.0 bar working pressure
• Brass body with round chrome finish; exposed valve
• Flow rates scale with pressure (6–28.4 l/min)

Technical specifications

• Inlet/outlet: 15 mm
• Size: 62 x 85 x 95 mm (H x W x D)
• Material/Finish: Brass, Chrome
• Pressure range: 0.2–3.0 bar
• Flow: 6–28.4 l/min (0.2–5.0 bar)
• WRAS: 1210018
