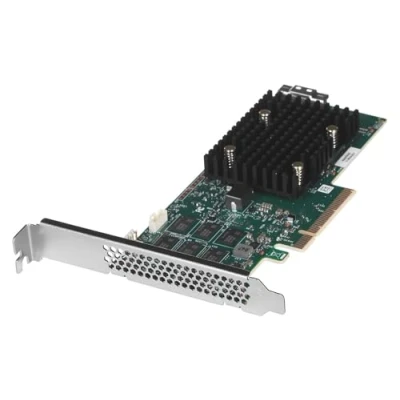

Broadcom MegaRAID 9560 8i Controller (RAID) 8 Canal SATA 6Gb/s/SAS 12Gb/s/PCIe 4.0 (NVMe) RAID 0, 1, 5, 6, 10, 50, JBOD, 60 PCIe x8

Broadcom Megaraid 9560-8i Controller Pcie Sata/sas Raid Storage. Specifications:General:- Type of device: Storage controller (RAID) - insert card- Bus del host: PCIe 4.0 x8Storage controller:- Interface: SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)- buffer size: 4 GB- Supported devices: Disk stack (RAID)- No. channels: 8- Maximum number of storage devices: 240- Level RAID: RAID 0,RAID 1,RAID 5,RAID 6,RAID 10,RAID 50,JBOD,RAID 60Expansion / Connectivity:- Interfaces: 1 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (interno)Different:- Features: Tri-Mode SerDes technology- MTBF (Mean Time Between Failures): 3,000,000 hours- Compliance: Certificado FCC Clase B,EN 60950,EN55022,IEC 60950,EN55024,UL 60950,ICES-003 Class B,RoHS,WEEE,FCC CFR47 Part 15 B,VCCI V-3,AS/NZS CISPR 22,CNS 13438Feeding:- Power consumption in operation: 9.64 watts- Software / System Requirements- Required operating system: FreeBSD,Red Hat Linux,SuSe Linux,Microsoft Windows,Debian Linux,Oracle Enterprise Linux,CentOS,Ubuntu,VMware ESXi,Citrix XenServer,Linux Fedora,VMware vSphere (ESXi)Dimensions and weight:- Depth: 15.565 cm- Height: 6.89 cm- Environment Parameters- Minimum operating temperature: 0 °C- Maximum operating temperature: 55 °C- Operating humidity range: 5 - 90% (non-condensing). tradeinn Techinn

Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors Form-factor friendly cable exit Support critical, high-bandwidth applications with PCIe 4.0 connectivity Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60
