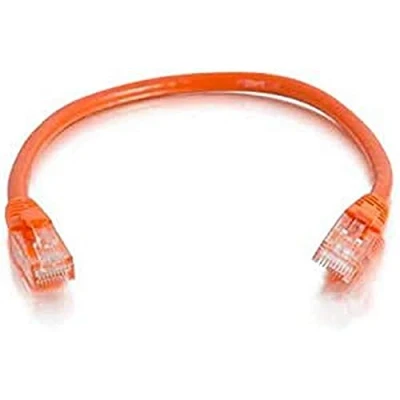

C2G 0.5m Cat6 Booted Unshielded (UTP) Network Patch Cable Orange

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. C2G's Ethernet, network cable meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Product Uses Gigabit 1 BASE-T; 1 BASE-T; 1 BASE-T (IEEE 82.3) 4/16 Mbps Token Ring (IEEE 82.5); 1 VG-AnyLAN 1 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM Voice; T76 Electrical Characteristics Conductor DC Resistance - 9.38? 1m (maximum) Impedance - 1? Capacitance - 56pf/1m Propagation Delay - 545ns/1m (maximum) Delay Skew - 45ns/1m (maximum) Physical Characteristics Wiring Scheme - T568B Standard: Category 6 TIA/EIA-568-B-2.1, draft 9 Connector: 5 micron gold-plated RJ45 Temperature Rating – 6°C Voltage Rating - 3V Approvals - RoHS Compliant Warranty – Lifetime Package Type – Polybag
