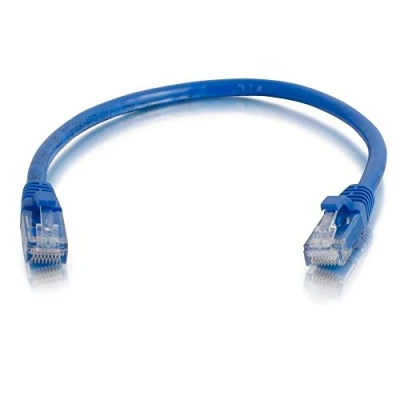

C2G 83385 0.5m Cat6 Booted Unshielded (UTP) Network Patch Cable Blue

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. C2G's Ethernet, network cable meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Product Uses Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM Voice; T8 Electrical characteristics conductor DC resistance - 9.38? 100m (Maximum) impedance - 100? Capacitance - 5600Pf/100m propagation delay - 545nS/100m (Maximum) delay skew - 45nS/100m (Maximum) Physical Characteristics Wiring Scheme - T568B Standard: Category 6 TIA/EIA-568-B-2.1, draft 9 Connector: 50 micron gold-plated RJ45 Temperature Rating – 60°C Voltage Rating - 30V Approvals - RoHS Compliant Warranty – Lifetime Package Type – Polybag
