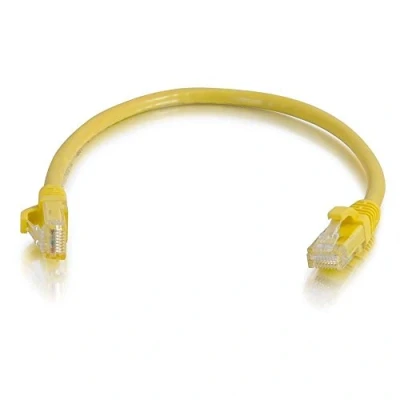

C2G Cat6 Booted Unshielded (UTP) Network Patch cable RJ 45 (M) to 7 m UTP CAT 6 molded, snagless, stranded yellow

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. C2G's Ethernet, network cable meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Product Uses Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM Voice; T79 Electrical Characteristics Conductor DC Resistance - 9.38? 100m (maximum) Impedance - 100? Capacitance - 5600pf/100m Propagation Delay - 545ns/100m (maximum) Delay Skew - 45ns/100m (maximum) Lifetime guarantee, All C2G electrical cables are designed and tested here in the UK to the highest standards. Fully compliant.
