Cannon Tools Engine Timing Tool Pin Set Compatible With 1.4 And 1.6 HDI/TDCI Engines PSA Citron Peugeot Ford Volvo Mazda

ManoMano

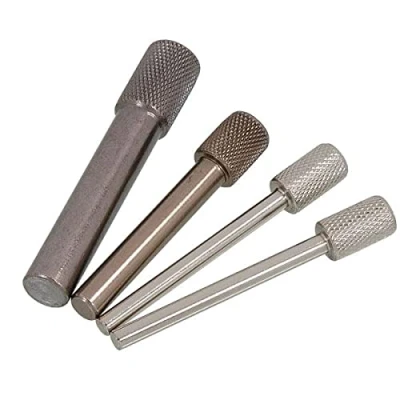

General description For setting engine timing when replacing the camshaft, cylinder head gasket, and other related components. Technical specifications Compatible engines include: Citroen 1.4HDi - DV4TD (8HT/8HW/8HX/8HZ) 1.4HDi - DV4TED4 (8HV/8HY) 1.6HDi - DV6TED4 (9HY/9HZ) 1.6HDi - DV6ATED4 (9HW/9HX) 1.6HDi - DV6UTED4 (9HU) Mazda 1.4CiTD - F6JA, F6JB, 1.6CiTD - Y6 Peugeot 1.4HDi - DV4TD (8HT/8HW/8HX/8HZ) 1.6HDi - DV6UTED4 (9HU) Ford 1.4TDCi - F6JA, F6JB, F6JC, F6JD 1.6TDCi - G8DA, G8DB, HHDA 1.6TDCi - HHDB, HHJA, HHJB, HHJD Volvo 1.6D - D4164T Includes tools such as: Flywheel locking bolt (OEM: PSA 0194-C, Ford 303-734 (21-262), Volvo 999-7169) Crankshaft & high pressure pump locking pin (2 pcs.) (OEM: PSA 0194-A, Ford 303-732 (21-260), Volvo 999-7233) Camshaft locking pin (OEM: PSA 0194-B, Ford 303-735 (21-263), Volvo 999-7122) Mazda 49 JE02 020 and 49 JE02 018, 49 JE02 021

Amazon

Application Use: For setting engine timing when replacing the camshaft or cylinder head gasket Comprehensive Kit: Includes flywheel locking bolt, crankshaft / high pressure pump locking pin, and camshaft locking pin Engine Compatibility: Suitable for compatible with Ford, compatible with Mazda, compatible with PSA and compatible with Volvo engines OEM Codes: Matches OEM references 0194-A, 0194-B, 0194-C Engine Coverage: Covers selected 1.4 and 1.6 diesel engines across multiple brands
