CasaFan Eco Elements 132 gr Household Blade Fan 23 W Black Fans (Black, W, 110 240 AC, 50/60, 1320 mm)

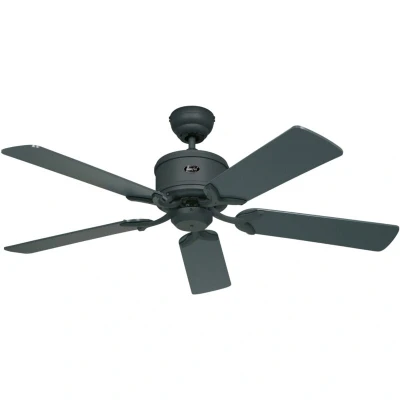

The DC Ceiling Fan Eco Elements 132 in Graphite is a modern ceiling fan that combines style and efficiency, making it a perfect addition to any space. Designed with optimal airflow and comfort in mind, this fan features a contemporary design with reversible blades in graphite and black, allowing it to complement a wide range of decors.

Technical Specifications

The Eco Elements fan operates on a voltage range of 100-240 V within 50/60 Hz and boasts an impressive diameter of 132 cm (52 inches). The sleek graphite housing and reversible blade colors not only enhance its aesthetic appeal but also contribute to its versatile functionality.

- Motor Wattage: The fan operates with variable motor wattage ranging from 1 to 26 W, allowing for adjustable energy consumption tailored to your needs.

- Revolutions per Minute: With a range of 30 to 204 RPM, the fan provides options for gentle breezes as well as powerful airflow.

- Max Airflow Rate: It delivers an impressive maximum airflow rate of 150.9 m³/min (5329 CFM), ensuring a comfortable environment throughout your space.

- Sound Level: Operating at a maximum sound pressure level of only 31 dB(A) at 3 meters, this fan is designed for quiet operation, making it ideal for bedrooms, living rooms, or quiet offices.

Installation and Compatibility

The Eco Elements fan is designed for versatility in installation. The distance from the ceiling to the blades is 32 cm (12.6 inches) or can be adjusted to 25 cm (9.8 inches) with a short drop rod. The overall drop of the fan is 35.5 cm (14 inches), with a reduced height of 28.5 cm (11.2 inches) when using a short drop rod. The diameter of the canopy measures 13.2 cm (5.2 inches), and the motor housing has a diameter of 22.5 cm (8.9 inches), while it is compatible with ceilings sloped at a maximum of 28 degrees.

Power-Saving Features

What sets the Eco Elements ceiling fan apart is its significant power-saving capabilities. Utilizing advanced DC/EC technology, the fan operates at a maximum consumption of only 23 watts, which is substantially lower than traditional fans that typically consume up to 70 watts. This energy-efficient design not only reduces your electricity bills but also minimizes your ecological footprint.

Functionality

The Eco Elements fan can be conveniently controlled using a remote, which includes six distinct speed levels, the option to reverse the fan's rotation, and a timer function. This allows users to customize their comfort and airflow with ease.

In summary, the DC Ceiling Fan Eco Elements 132 in Graphite melds contemporary design with advanced functionality, making it the ideal solution for those seeking both aesthetic charm and energy efficiency in their living or working environments.
