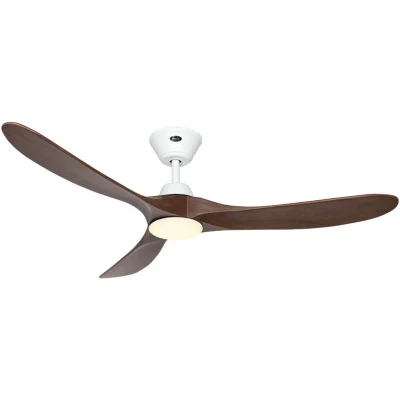

CASAFAN Eco Genuino L Ceiling Fan, Rotor Blade 1520 mm, Walnut/Matt White

Zoro Tools

@@@3Ke6Tq1qtmsG3bcsi4O3Qr+OeHF0HJMw@@@ GENUINO-L ceiling fan, rotor blade 1520 mm, walnut/matt white. Supplied = flat pack. Product type = ceiling fans. Rotor blade diameter = 1520 mm. Housing colour = matt white. Blade colour = nut. Number of speed settings = 6. Max. speed = 144 rpm. Max. air volume = 9176 m/h. Power = 0.0165 (Motor) + 0.017 (Leuchte) kW. Sound pressure LPA (-3 m) = 20.1 dB (A) Sound power LWA = 40.6 dB (A) Fittings = lighting, wall switch, remote control. Protection type = IP00. Height = 420 mm. Width = 1520 mm. Depth = 1520 mm. Mains voltage = 220 - 240 V/~50 Hz. Ceiling-blade spacing = 390 mm. Number of blades = 3 pcs. Number of blades included with delivery = 3 pcs. 3 hand-made solid wood blades and dimmable LED lamp. For rooms up to 40 m, high output of 9176 m/h. Very energy efficient, service ratio 9.3 (m/min.) /W in accordance with EU Directive 206/2012. 6 forwards/reverse rotation speed settings (summer and winter mode) selected using remote control. Lowest setting guarantee to not cause draughts, also ideal for recirculating heat in winter. Can be installed at angles up to 18. 25-year manufacturer warranty on the motor. An eyecatcher for any room, whether in the office or at home. State-of-the-art, energy saving DC/EC motor. For rooms of normal height, the distance between ceiling and blades is 390 mm. Includes remote control with sleep timer, slow motion setting. Supplied complete with wall bracket and 200 mm ceiling rod. Includes dimmable LED lamp 17 W LED module ML095A-1, light colour warm white, 3000 K, 1800 lm, beam angle 120, service life 20000 h, CRI 80, energy efficiency class F (spectrum G to A). The lamp contains integrated LED bulbs. The bulbs in the lamp cannot be replaced in the lamp. Replacement LED panels are available. Performance data: Speed setting 1 = 50 rpm/power consumption setting 1 = 3.3 watts/sound power level L W = < 32 dB (A)/sound pressure level L P -3 m = < 15 dB (A). Speed setting 2 = 57 rpm/power consumption setting 2 = 3.6 watts/sound power level L W = < 32 dB (A)/sound pressure level L P -3 m = < 15 dB (A). Speed setting 3 = 77 rpm/power consumption setting 3 = 4.8 watts/sound power level L W = < 32 dB (A)/sound pressure level L P -3 m = < 15 dB (A). Speed setting 4 = 96 rpm/power consumption setting 4 = 6.6 watts/sound power level L W = < 32.4 dB (A)/sound pressure level L P -3 m = < 15 dB (A). Speed setting 5 = 114 rpm/power consumption setting 5 = 9.4 watts/sound power level L W = < 35.4 dB (A)/sound pressure level L P -3 m = < 15 dB (A). Speed setting 6 = 144 rpm/power consumption setting 6 = 16.5 watts/sound power level L W = < 40.6 dB (A)/sound pressure level L P -3 m = < 20.1 dB (A). Air speed 1.5 m above floor = 1.78 m/s. The maximum air speed is specified at the highest setting at a height of 1.5 m above the floor in a room 3 m high. This will help you estimate draughts that will occur at head height when sitting under the ceiling fan. This specification refers to the highest speed. Precise speed levels with as many settings as possible allows pleasant, draught-free operation even in winter by recirculating the warm air that is under the ceiling. Noise measurements were carried out at the VDE Testing and Certification Institute in Offenbach. The lower threshold for the measurement by the laboratory is 32 dB (A) for sound power L W and 15 dB (A) for the sound pressure L P -3 m. Because many ceiling fans on the market feature one or the other value in the specifications, we are providing the measured noise values as both sound power L W and sound pressure L P -3 m.

ManoMano

Dimensions and technical details 220-240 V ~ 50 Hz Diameter: 152cm / 60" Housing colour: matt white Blade colour: walnut Integral lighting: 17 W LED (included in the delivery) Motor wattage: 3.3 / 3.6 / 4.8 / 6.6 / 9.4 / 16.5 W Revolutions per minute: 50 / 57 / 77 / 96 / 114 / 144 Max. airflow rate: 152.9 m³/min / 5399 cfm Max. sound pressure level Lp-3m: 20.1 dB(A) Max. sound power level: 40.6 dB(A) Ceiling to blades: 34cm / 13.4" Ceiling to bottom: 42cm / 16.5" Diameter canopy: 18cm / 7.1" Max. ceiling slope: 18° Forward and reverse function (summer and winter mode) Includes remote control: 6 fan speeds / off, light on / off / dimming, running direction Weight: 8.9kg / 19.6lbs Details lighting LED module Wattage: 17 W Lumens: 1800 lm Colour temperature: 3000 K CRI: 80 Average service life: 20000 h Angle of radiation: 120° Dimmable
