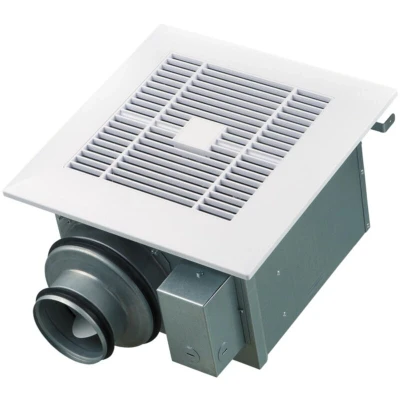

CBF 300 T Radial Ceiling Fan

ManoMano

Dimensions and technical details 220-240 V ~ 50 Hz Housing material: galvanised steel Impeller material: ABS plastic Nominal diameter: 150 mm Speed levels: 2 Wattage min./max.: 31 / 49 W Current consumption min./max.: 0.15 / 0.22 A Revolutions per minute min./max.: 936 / 1254 Airflow rate min./max.: 220 / 300 m³/h Airflow rate min. / max.: 61 / 83 l/s Sound pressure level Lp-3m min./max.: 28 / 31 dB(A) IP code: IPX2 Insulation class: I Ambient temperature: +1°C to +40°C Weight: 5.3 kg Control panel on the fan Adjustable shut-off timer (2-30 mins.): fan turns off after expiration of the pre-set time Overheating protection Integral backdraught shutter prevents cold air from infiltrating Includes mounting frame Mounting options: ceiling For pipe systems with high air resistance (diameter 150 mm) Application: permanent and interval ventilation in bathrooms, showers, kitchens, living rooms Dimensions in mm A E B L1 L2 h H Ø D d C CBF 300 T 330 395 258 50 / 18 188 149 / 260

Amazon

Ceiling built-in fan for bath & shower, Manufacturer: Vents
