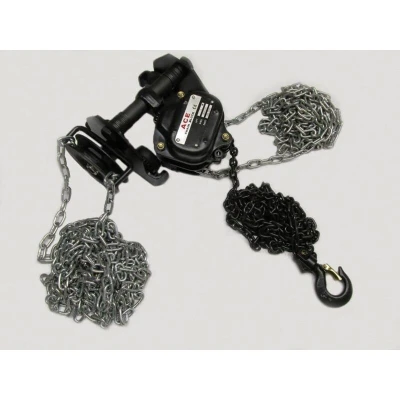

Chain Block and Geared Trolley Combination 1T 6M (Beam Girder Lift Tackle Manual)

General description Combination Chain Block & Geared Trolley is an excellent all-in-one product designed for ease and convenience in lifting applications. The geared trolley attaches to steel beams, providing an adjustable lifting point for the chain block. This combination allows for easy and precise movement due to the hand chain and gear mechanism. The chain block features a chain guide for smooth operation and is constructed from durable steel for ease of use and transport. Safety hooks are drop forged and heat treated to ensure safety and durability. Technical specifications Safe Working Load: 1 Ton (1000 KGS) Lift Height: 6 Metres Hand Chain Effective Working Length (EWL): 5.8M Chain Falls: 1 Load Chain Diameter: 6MM Trolley Dimensions: 310MM (Length) x 250MM (Width) Overall Height: 330MM Recommended Beam Size: 60MM-146MM Other information Conforms to: BS EN 13157: 2004+A1: 2009 Supplied with Test Certificate (sent via email) Please note: Colour may vary; contact for black finish
