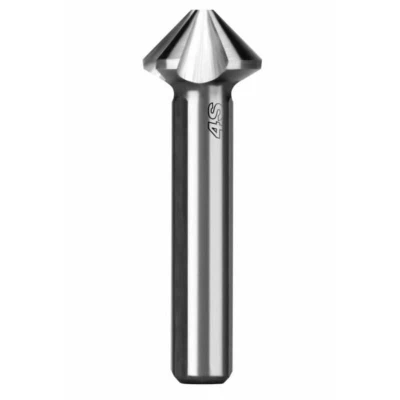

Conical Mill RUKO ULTIMATECUT 4S 19 mm HSS Cylindrical Shank

Ruko Ultimatecut 4s Hss Din 355 90° Conical Countersink 19 Mm. High work quality, lower costs. The newly developed ULTIMATECUT countersink 4S works with four instead of three cutting edges. The distribution of the forces acting on the four cutting edges noticeably reduces the axial and radial forces and guarantees extremely smooth and material-friendly running of the tool through the unequal division. The new ULTIMATECUT countersink 4S thus not only ensures a perfect countersinking pattern without chatter marks, but also particularly energy-saving and material-saving work with up to 50 % time savings and up to 3 times longer tool life. Another plus: For the first time, countersinking with diameters up to max. 40 mm can even be carried out with hand-held screwing and drilling tools using the newly developed cutting edge technology.The new ULTIMATECUT countersink 4S works equally precisely in pillar drilling machines as well as in CNC-controlled machining centers.The new ULTIMATECUT countersink 4S has a 3-surface shank as standard, which prevents slipping in the drill chuck and ensures a consistently optimal power transmission in the work process.Features:- Best performance in stationary + manual use- Significantly less feed force required- Up to 3x more countersinking possible- Up to 50% faster sinking- Extremely smooth running- Optimum countersink pattern without chatter marksSpecifications:- Net weight: 39 g- Shaft diameter: 10.00 mm- Diameter: 19,0 mm- Length: 63.0 mmTechnical data:- Number of cutting edges: 4- Sinking angle: 90°- DIN: ähnlich 335- Material: HSS- Coating: Uncoated- Cutting direction: right hand cutting- Shaft: Three-face shankApplication areas:Main application:- Steel 900 N/mm²- Brass- AluminiumOther application:- Plastics. tradeinn Bricoinn
