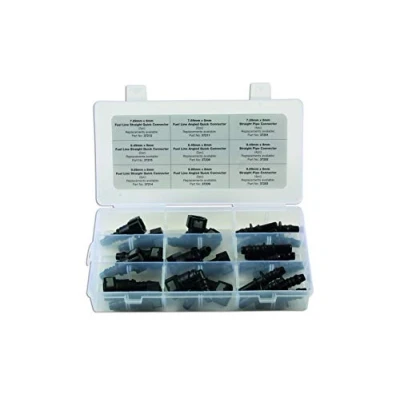

Connect 34029 Assorted Fuel Line Quick Connector Kit 24pc

ManoMano

A set of 6 different sized straight & angled fuel line quick connectors and 3 straight pipe connectors, allowing for tight connections on fuel line inner diameters of 8mm. The 90� (elbow) angle provides easier fixing in tight spaces. Quick connectors are designed for the automotive industry for the transfer of fuel, oil, water cooling systems and air. The self locking connector enables it to be connected & disconnected with ease and speed, with the wide operating temperature range ensures it can cope with the extreme temperatures that could lead to cracking and leaks. To ease the fitting of the hard plastic fuel pipe to the connectors, use Laser Tools Pipe Connector Insertion Tool, Part No. 6933. 90� angled & straight quick connectors & straight pipe connector sizes: 7.89 x 8mm, 9.49 x 8mm, 9.89 x 8mm. Constant running pressure: 5 bar (72psi); max pressure: 7 bar (101psi). Operating temperature: -40�C to 120�C. Body manufactured from nylon PA12; O-ring from FKM seal (viton). Made to

Amazon

Assortment contains 3 angled connectors, 3 straights and 3 pipe fittings Angled fittings - 789mm x 8mm (37211,) 949mm x 8mm (37208), 989mm x 8mm (37209), Straight fittings - 789mm x 8mm (37213), 949mm x 8mm (37215), 989mm x 8mm (37214), Straight pipe connectors - 789mm x 8mm (37201), 949mm x 8mm (37202), 989mm x 8mm (37203), 24pc
